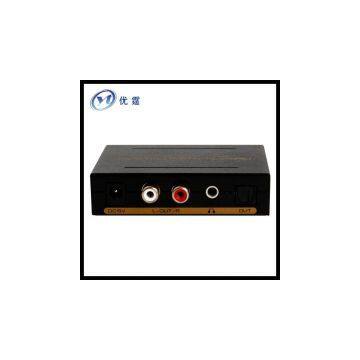

Digital to analog Converter SPDIF switcher

 This product is a 4-Ports SPDIF switcher, also is a digital to analog converter. You can switch any one of the four digital audio signals to the one SPDIF/Toslink audio output. At the same time, it can convert the LPCM digital audio into analog L/R audio output and headphone output. It can be used to do audio decode for the DVD, Blue-Ray DVD, PS3, X360BOX, HD Player, PC and other similar signal generator source.

FEATURES:

1.  4-Ports SPDIF (2×Toslink and 2×Coaxial) digital audio input, switch to 1-Port SPDIF/Toslink output

and one L/R analog audio output and one headphone output

2. Uses 192KHZ/24bit DAC

3.  Support digital audio formats: Dolby AC3, DTS, THX, HDCD, LPCM for SPDIF output

4.  Support LPCM digital audio converted to analog audio output

5.  Automatic identification input digital audio signal format, when non-LPCM input, analog output mute

6.  Input status indication. When no audio or error data input, the input port indicator starts to flash

7. A key switch, easy operation

8.  Headphone amplifier output, can drive the general 3.5mm earphone

9. High tone quality, low noise

10. Power-off memory

11. DC5V/1A power adapter

OPERATIONG AND CONNECTION:

1. Connect one optical fiber from digital audio signal source into any one input port of decoder.

2. If you need a digital audio, connect one optical fiber from digital power amplifier into the output port of decoder.

3. If you need an analog audio, connect one A/V cable from TV/ analog power amplifier into the L/R output

port of decoder.

4. When using headphone, insert the plug into the headphone jack.

5. Connect 5V power supply to the decoder and inserted into the power socket.

6. Select the signal sources using a switch key on the decoder.

SPECIFICATIONS: ADSW0006M1
Analog Audio Output Support audio format .............PCM/LPCM
DAC sample frequency range............................ 32～192 KHz
DAC Bit rate range..........................16～24 Bit
Digital input level..........................................0.1~1Volts p-p
L/R output level(1kHz@0dB)..............................1V RMS
Headphone output power (1kHz@0dB RL=32)...............30mW
SNR @ 0dB(CCIR/ARM)........................................90dB
Distortion.....................................................0.1%
Frequency response......................................20Hz~20KHz
Max working current ........................................100mA
Power adapter format Input .......................AC 100V～240V 50HZ/60Hz, DC5V/1A
Operating Temperature range ...................10 to +55℃
Storage Temperature range.........................-20 to +60℃
Operating Humidity range ...........................10 to 90%RH (No Condensation)
Storage Humidity range..................................5 to 95%RH (No Condensation)
Case Dimension (L x W x H)........................85x62x21 (mm)
Weight ........................................................130g
