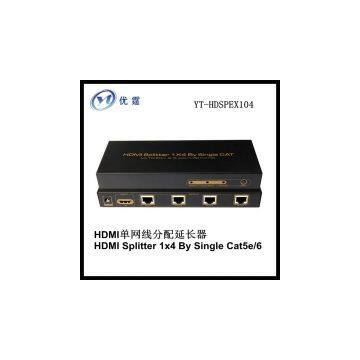

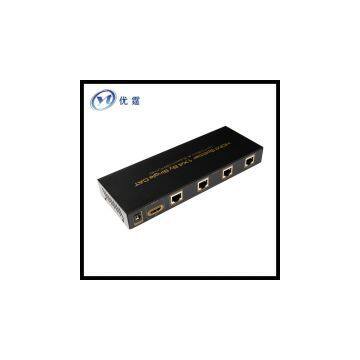

Help CenterHDMI Splitter 1X4 Extender By Single CAT5e/6/7 Up TO 60m & Support 3D Full HD
Related Products
-
HDMI Repeater / Booster / Extender / Amplifier 30mUS$ 38 - 38MOQ: 100 Sets -
HDMI Optical Extender 300m HDMI1.4V 4kx2k 3d 1080P120HZUS$ 210 - 210MOQ: 50 Sets
-
HDMI Repeater 30m Female to Male Buffer and AmplifierUS$ 6 - 6MOQ: 200 Pieces
-
HDMI Coax. (RG-6U BNC) Extender 120M Coaxial Extender 1080PUS$ 100 - 100MOQ: 50 Pieces
-
HDMI Wireless Transmitter and Receiver 100M HDMI ExtenderUS$ 1000 - 1000MOQ: 2 Pieces
This HDMI splitter 1x4 extender can extend and connect one HD Source to four HD Displays or Projectors by four pieces of cat6/7 at the same time. The extending distance can reach 60m. This extender meets the needs of multi-route and low-cost HD Signal long distance transmission well.
Our series of HDMI Converters, switchers, extenders, matrixes and splitters are designed to make your A/V device use more convenient, more comfortable, more productive and more cost-efficient.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
FEATURES
One HDMI input distribute and extend to found Display by four cat6/7 cable. The extend distance can be up to 60m.
Support 3D
Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Audio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
LED Status Light: the related led light will go bright.
The extend distance can be up to 60m.
Support signal retiming
No loss of quality
Installs in minutes
TX uses the DC5V/3A power adaptor.
Four RX: each one uses 5V/1A power adaptor
The accessories with the machines lists as picture:
1, 5V/3A Power Adapter 1 pcs
2, 5V/1A Power Adapter 4pcs
3, one pc of Manual 1 pcs
Operating and Connecting:
To use one piece of HDMI Cable to connect the HD Source with the HDMI input port of the extender, the HDMI Cable up to 15m.
To use one pieces of cat6/7 for each distributed HDMI Signal to connect the sender and receive, the distance between the sender and receiver most up to 60m.
To use one HDMI cable to connect the RX with the Display, The HDMI Cable length can be up to 20m.
To connect the attached powers at the receiver and sender.
SPECIFICATIONS: YT-HDSPEX104
Length of CAT-6 cable between Rx and TX…..…………….……….…….…….. up to 60m
HDMI Input…..…………………...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format input..………DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Output…..…………….…...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format output...……. …………………………LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth………………………………………….…………………………………225MHz
Max baud rate……………….…….………………….….……….………………………6.75Gbps
Input Video signal ………….…………………………...…………………….… 0.5~1.5Volts p-p
Output DDC signal ……………………………………………………………… 5Volts p-p (TT1L)
Input HDMI cable distance..…... …………………....….…≤15m AWG26 HDMI standard cable
Output HDMI cable distance…………………..…..….…...≤20m AWG26 HDMI standard cable
Max working current(TX)…………………………………………………………………...2000mA
Max working current(RX)………………………………………………..…………………...600mA
Power adapter format(TX)………….…Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/3A
Power adapter format(RX)……………Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range……..…..………….……………..…………………… (0 to +40℃)
Operating Humidity range………………………….….…..…….5 to 90%RH (No Condensation)
Dimension (TX) …………………………….…………….……………..………..205x74x26(mm)
Dimension (RX) …………………………….………………..……...…(82X44X22) (mm) X4pcs
Weight…..………………………………………………..……..….……………………..……750g
Notes:
Pls use the machine as the instruction listed to keep the long use lifetime of the machine.
The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.
All parts will be free from the strong shake, hit, fall.
Touching the power adaptor with the wet hands is prohibited.
Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.
Pls turn the power off when the machine is not used for long time.
Pls do not open the cover and do not touch the inside parts.
Pls use the original factory power adaptor.
