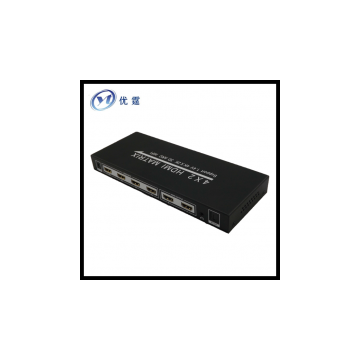

Help CenterHIFI 4x2 HDMI Matrix 1.4V HDMI Matrix 4X2 (SUPPORT 4KX2K 3D 5.1 /SPDIF/ 2.1/ARC)
Related Products
-
HDMI True Matrix 4x4 4 Inputs 4 Outputs HDMI Matrix Switch 4*4 HDMI Matrix 4*4 HDMI 1.3V 1080P (Switcher+splitter)US$ 130 - 130MOQ: 10 Pieces -
4x4 HDMI Matrix and 4 Port HDMI Extender 50m Over CAT CableUS$ 14 - 14MOQ: 1 Piece
-
HDMI 1.4 Matrix 6x2 HDMI 1.4V 4K2K ARCUS$ 14 - 14MOQ: 1 Piece
-
1.4V HDMI Matrix Switch 4x4 With RS232US$ 14 - 14MOQ: 1 Piece
-
6x2 HDMI Matrix HDMI 1.4V 4Kx2K ARCUS$ 14 - 14MOQ: 1 Piece
The HDMI Matrix 4x4 can connect four HD Sources with four HD Displays; it can easily switch and distribute four HD Source signals to four HD displays at the same time.
Our series of HDMI converters, switchers, extenders, matrixes and splitters are designed to make your A/V device use more convenient, more comfortable, more productive and more cost-efficient.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Feature:
Four Input HD Source signals switch and distribute to four HD Displays
Support 30/36 Bit Deep Color
Support Blue-Ray DVD24/50/60fs/HD-DVD/xvYCC
Support Audio Format:DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Support Signal Retiming
Input HDMI Cable length up to 10M if use the standard AWG26 HDMI Cable; Output HDMI Cable length up to 15M if use the standard AWG26 HDMI Cable.
It can use the remote to choose the signal source or switch the input signal source by press the switch button.
Use 5V3A Power Adaptor
Package Content:
1. Main Unit
2. Power Adaptor
3. Remote
4. User Manual
5. CD (RS232 Control Software)
6. IR Extender Cable
7. RS232 Serial Port Cable
OPERATIONG AND CONNECTION:
To use the HDMI cable to connect the four HD sources with the HDMI input port of the matrix.
To use the HDMI Cable to connect the four HD displays with the HDMI output port of the matrix.
To connect the power adaptor with the matrix.
To use the RS232 cable and the IR cable to connect the RS232 port and IR port of the matrix with the control equipment to do control to the matrix.
SPECIFICATION: HDMX0404
HDMI Input/Output Resolution……24/50/60fs/3D/1080p/1080i/720p/576p/576i/480p/480i
Deep Color…………………………………..…………….24bit/deep color 30bit,36bit
HDMI Audio Format……………….…DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Max bandwidth……………………………………………………………………225MHz
HDMI Max baud rate…….…………………….……………………………………..…6.75Gbps
Input/Output TMDS signal …………….…………………………..………0.5~1.5Volts p-p(TTL)
Input/Output DDC signal…………….…………………………………..………… 5Volts p-p (TTL)
HDMI Input cable distance.…... ……………….…………≤10m AWG26 HDMI standard cable
Output cable distance…………………………….………...≤15m AWG26 HDMI standard cable
Max working current……………………………….………………………………………….........2A
Power adapter format…………………..…………………………….…………………………5V/3A
Operating Temperature range……..…………….…….……………………………….…(-15 to +55℃)
Operating Humidity range…………………………………….….…5 to 90%RH (No Condensation)
Product size (L x W x H)……………………………….……………………………308X151X36 (mm)
Weight…..………………………………………………………..……………………………1216g
