Description

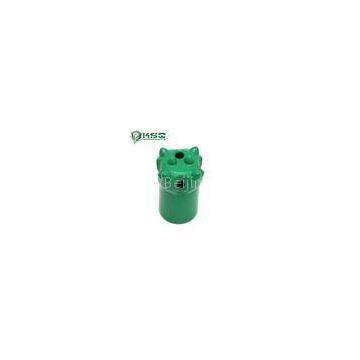

This type of bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.
• Widely used drifting and tunneling
• Bit face design is ideal for medium-hard to hard abrasive rock
Color: Green or Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: R25 Button Bit Short Skirt Ballistic Buttons
Applications
• Underground mining
• Tunneling
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
specification
1
<
| Part Number | Bit Diameter (mm) | Bit Diameter (inch) |
Front Buttons (No. x mm) |
Gauge Buttons (No. x mm) |
| 4148300385 | 33 | 1 2/7 | 2x7 | 5x7 |
| 4148300386 | 35 | 1 3/8 | 2x7 | 5x9 |
| 4148300387 | 38 | 1 1/2 | 2x7 | 5x9 |
| 4148300388 | 41 | 1 5/8 | 2x8 | 5x9 |
| 4148300389 | 45 | 1 7/9 | 2x9 | 5x10 |
2
<
| Product Code and Brief Description | Angle |
Front Flushing Holes |
Side Flushing Holes |
Weight (kg) |
| BS733-R25-B, R25 Button Bit, Short Skirt, Ballistic Buttons | 35° | 1 | 1 | 0.4 |
| BS735-R25-B, R25 Button Bit, Short Skirt, Ballistic Buttons | 25° | 1 | 1 | 0.4 |
| BS738-R25-B, R25 Button Bit, Short Skirt, Ballistic Buttons | 40° | 1 | 1 | 0.5 |
| BS741-R25-B, R25 Button Bit, Short Skirt, Ballistic Buttons | 40° | 1 | 1 | 0.6 |
| BS745-R25-B, R25 Button Bit, Short Skirt, Ballistic Buttons | 35° | 1 | 2 | 0.6 |
