DIN 1.2083 Forging Die Steel S136 Plastic Mould Steel Machined Surface

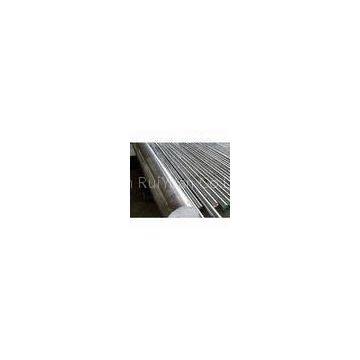

S136 Plastic Moud Forged Steel / Round Bar Steel / Mold steel / Die steel S136
Specification :
Diameter Length
|
Forged condition |
¢150~¢600 |
2500~4000 |
Local mill with 6000tons fluid forged machine |
Description
1. DIN 1.2083/AISI 420/S136/GB3 4Cr13 Plastic mould steel , round bar
2. Delivery : forged condition, annealing or Pre-harden , black or machined surface
3.Hardness: ≤229HBS or 32~36HRC
4. smelting process:
Forged technology: EAF+LF+VD+ESR+Forging +Q T + Machined surface
5.hot treatment quench:1020-1050°C,oil cooling or quenching liquid colling,hardnessHRC≥45
backfire:temperture(°C): 100 200 300 400 500 600
hardness(HRC): 49 47 46 46 47 32
5.Production leadtime: 7~10 days
6.Ultrasonic test standards: Sep1921-84,Gr.3, Class C/C or D/D
7. Chemical composition:
|
C |
Si |
Mn |
P≤ |
S≤ |
Cr |
Ni |
|
0.36-0.45 |
≤0.06 |
≤0.8 |
0.030 |
0.035 |
1.20-1.4 |
≤0.8 |
8.Compared grades(based on usage):
|
GB |
ASTM |
DIN |
ASSAB |
|
4Cr13 |
420 |
1.2083 |
S136 |
Applications:
Used for making the corrosion resistance and wear resistance of high quaity plastic mould, transport plastic mould, like PVC and CD mould.
Competitive Advantage:
1.Pure & Precision mirror polishing
2.Highly quality of corrosion resistance
3.Convenient heat treatment for quenched&tempered steel, with out deformed
4.Easy for welding
5.Competitive price
6.Fast production leadtime
7.All the material are inspected with 3 times to meet the highly standards material supplied
8.Stable quality to be guarantee
