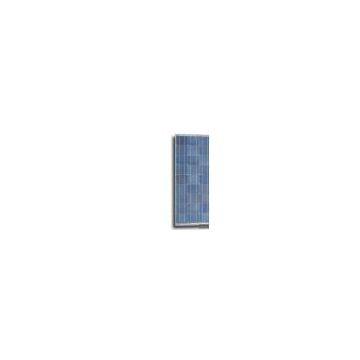

Mono Crystalline Solar Modules

Ploy or Mono Crystalline Solar Module / panels

               low iron tempered glass, EVA laminate andwaterproof TPT yield long life modules whileenhancing cell performance

              2-year full product warranty

              20 year limited warranty on power output

Crystalline solar modules offer industryleading high performance and are designedspecifically to meet our clients’demands forresidential, commercial and industrial use –fromsmall installations to multi-Megawatt power plants.

Technical data under STC

Nominal peak power(Wp)  160      170       175

Nominal voltage( Vmp)   34.2    34.4      34.6

Nominal current (Imp)    4.6      4.9        5.1

Open circuit voltage( Voc)  43.2     43.2       43.2

Short circuit current(Isc)    5.3      5.6        5.8

Minimum power tolerance           +/-5%

Cells per module                  72pcs 5” cells

Module size                      1580x 808x 35mm

Maximum System Voltage          715V DC

Temperature coefficient  Voc        -0.38%/⁰C

Temperature coefficient Isc          +0.10% /⁰C

Temperature coefficient Pmax        -0.47%/⁰C

IEC-61215 certificate                yes

Safety Class II                      yes

Operating Temperature            -40/+85⁰C

Maximum Series Fuse  Amps  10

  * Standard test conditions: Irradiance = 1,000 w/m? cell temperature = 77degF / 25degC; solar spectral irradiance per ASTM E892; rated power tolerance ?0 percent.
