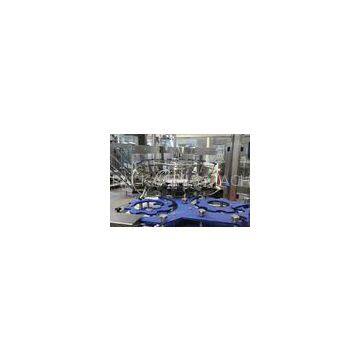

Washing Filling Capping Carbonated Drink Filling Machine 500ml

DXGF series applies to the production of carbonated drink, with optional capacity from 3000BPH to 30000BPH



Main features:

1. Compact structure, beautiful appearance, easy operation, high automation, low labor intensity
2. Bottles transmission adopts bottlenecks clamping technology, no need to adjust the equipment height when changing bottle volume, simply replace guide plate, thumb wheel that related to the bottle diameter and mouth.
3. The parts that direct contact with product are made of SUS 316L stainless steel and no technology corner pockets
4. Valve opening device is driven by the cylinder; open the valve in time according to the signal, movements are accurate and reliable.
5. High-speed high-volume, high precision filling valve, filling fast, accurate and non-liquid fluid loss
6. Using deflection regulating valve, continuous control of fluid materials flow, so that hydraulic cylinder to maintain a smaller level fluctuations, to ensure filling accuracy
7. Equipped with CIP circuit and control procedures, equipment is cleaned in place.
8. Capping head adopts constant magnetic torque device to ensure the seal of quality, and will not damage caps
9. Efficient use of the cap sorting system, with a perfect cap lacking protective device.
10. Bottle-outlet thumb wheel adopts downward spiral approach, when changing bottle volume, no need to adjust conveyor height.
11. With complete overload protection device, can effectively protect the equipment and the operator\'s safety.
12. Using touch-screen operation, can realize man-machine dialogue, equipment operation status is very clear.
13. Main electrical components (touch screen, PLC, inverter, etc.) are imported brand-name products, Omron, Mitsubishi, Schneider, etc
14. Pneumatic system components are used well-known brand name products. SMC, or FESTO, etc


Technique Parameters:
