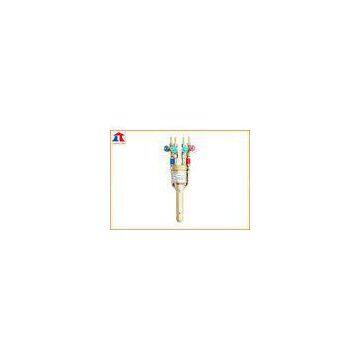

30 mm Brass Flame Steel Cutting Torch , Zinc Powder Spraying And Marking Torches

30 mm Brass Flame Steel Cutting Torch , Zinc Powder Spraying And Marking Torches thumbnail-1
30 mm Brass Flame Steel Cutting Torch , Zinc Powder Spraying And Marking Torches photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Longteng
Place of Origin:
China
Model Number:
LT-PH-01
Contact Supplier Request Quote Chat Now
Longteng Welding And Cutting Equipment Company
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Longteng
Place of Origin China
Model Number LT-PH-01
Delivery Time:7-15 days after the payment
Certification:CE,ISO

30 mm Brass Flame Steel Cutting Torch , Zinc Powder Spraying And Marking Torches

1) Quick Detail:
1. Powder spraying and marking device
2. Applicable to CNC flame cutting machine
3. The material is brass,outer diameter is 30mm
2) Description:
1. The powder spraying device has 4 gas inlet channels among which 3 are for oxygen,1 for Fuel gas.Two outermost channels, one is for preheat oxygen,the other is for Fuel gas; the middle one is for cutting oxygen; by which it is for powder spray.
2. Firstly,screw off knurled nut,put zinc powder into storage tank and screw on the nut.
3. Secondly,ignite powder spray device, adjust cutting oxygen,open the value of powder spray gas channel,then zinc powder will be automatically sprayed onto the plane.
1> Standard Configuration
Gun body,regulating valve,flashback arrestor,nut,core(core can be customized according to the size of the hose)
3) Applications:
It is applicable to digital-control cutting machine of different series. It is melts zinc powder inside storage tank with flame and spray it onto the steel plate according to design, then along the zinc powder line cutting machine conducts cutting with digital-control cutting torch.The width of the line is 0.5mm,which is adjustable.
4) Specifications:

Model Number

LT-PH-01

Brand Name

Longteng, OEM

Place of Origin

Wuxi, China (Mainland)

Certification

CE,ISO

Loading Port

FOB Shanghai

Payment Terms

T/T, L/C, Western Union

Material

Brass

Total Length

275mm

Barrel Length

120mm

Outer Diameter

30mm

Working Speed

0.3~30m/min

Line Width

0.6-1.2mm

Line Thickness

0.05~0.20mm

5) Competitive Advantage:
1> Product Advantage:
1. Adopt the isobaric preheating,use the zinc powder spraying more than 200 mesh,can be continuous powder spraying and marking,clear line,compact structure,strong and durable.
2. Suitable for automatic equipment and perform the various of complex graphic.
