Custom Large Fully Hydraulic Horizontal PET Injection Molding Machine HW658 for Sale

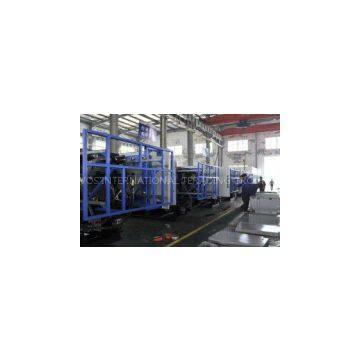

Custom Large Fully Hydraulic Horizontal PET Injection Molding Machine HW658 for Sale photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HANVOS
Place of Origin:
China
Model Number:
1
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Brand Name HANVOS
Place of Origin China
Model Number 1
Delivery Time:20days

Custom Large Fully Hydraulic Horizontal PET Injection Molding Machine HW658 for Sale

Plastic injection molding machine is an important equipment which can inject hot plasticity plastic and hot getting firm plastic after heating and making various kinds of plastics products. The plastics industry is a new developing industry, though the developing history of injecting molding machine is still very yong, With the development of sciece and technology , the plastic injection molding machine have already developed into a relatively ripe machines. HW series machine is reseachine is researched, developed, making, selling all by oneself since the company established. HW series is exactly representative of machines, which can satisfy user\'s processing of various kinds of ordinary products.

MODEL HW-658

INJECTION  UNIT SCREW TYPE UNIT A B C
SCREW DIAMETER mm 95 100 105
SCREW L/D RATIO L/D 22 21 20
SHOT VOLUME cm3 3225 3574 3940
SHOT WEIGHT g 2935 3252 3585
INJECTION PRESSURE Mpa 176 158 144
MAX. SCREW SPEED rpm 105
CLAMPING UNIT CLAMPING FORCE kn 6580
SPACE BETWEEN TIE-BAR mm 900*900
OPENING STROKE mm 920
MOULD THICKNESS mm 350-900
HYDRAULIC EJECTION FORCE kn 212
HYDRAULIC EJECTION STROKE mm 280
NO. OF EJECTOR PINS pc 17
OTHERS HEATING CAPACITY kw 42
PUMP MOTOR kw 30+37
HYDRAULIC SYSTEM PRESSURE Mpa 16
OIL TANK CAPACITY L 1300
MACHINE DIMENSION(L*W*H) M 10.6*2.4*3.1
MACHINE WEIGHT T 36
