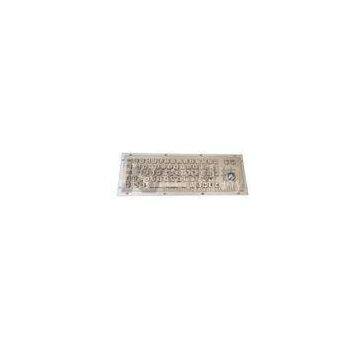

Medical Metal Keyboard With Trackball , Vandal Resistant , CE , FCC Approval

Medical Metal Keyboard With Trackball , Vandal Resistant , CE , FCC Approval thumbnail-1
Medical Metal Keyboard With Trackball , Vandal Resistant , CE , FCC Approval photo-1
Negotiable MOQ: 1 Pair (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
KEYU
Place of Origin:
China
Model Number:
KY-PC-N
Contact Supplier Request Quote Chat Now
Shenzhen KEYU Company,
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name KEYU
Place of Origin China
Model Number KY-PC-N
Delivery Time:7-15 working days upon receiving payment
Certification:CE,FCC,RoHS,IP65

Medical Metal Keyboard With Trackball , Vandal Resistant , CE , FCC Approval

Quick Detail:

1. Industrial keyboard

2. Waterproof, dust-proof and vandal resistant

3. CE,FCC,ROHS,IP65 certificate

4. USB or PS/2 interface

5. Customized layout

Features


67 keys metal keyboard with trackball

Water, dust and vandal resistant

Etching and inking lettering

Brushed surfaceCompatible with WINDOWS98/ME/2000/XP

Designed for public, outdoor, industrial and other extreme surroundings

Can be cleaned with soapy water, disinfectant or other cleaning agents

1 year warranty, can be upgrade longer

CE, RoHS, FCC approval


Dimension


Front panel: 320x110mm

Overall: 354x124mm

Trackball Dia.:38mm


Material


Front plate: 304# Stainless steel

Keycaps: 304# Stainless steel

Trackball: 304# Stainless steel

Back plate: Aluminum alloy


Mechanical


IP65

NEMA4, IK7

Key stroke travel: 2mm

Key actuation force: 120g/1.18N

Key durability: more than 1 million click times

Net weight: 1.3kg

Operation temperature: -10℃ to +50℃

Storage temperature: -30℃ to +80℃

Relative humidity: 30% to 95%

Atmospheric pressure: 50kPa to 110kPa


Electrical


Power input: +5V/DC, 10mA

EMC emission: EN55022(B)

Mechanical trackball resolution: X:>200dpi, Y: >190dpi

ESD resistant: 8kV by air contact, 5kV by direct contact


Free Options


Trackpad type (KY-PC-NT)

Most language layout

USB and PS/2 interface


Upgrade Options


Optical trackpad

IP67 type

Extended operation temperature

Back light keys

Laser burnt lettering

Black color (KY-PC-N-BL)

Desktop type(KY-PC-N-Desk)

Longer warranty

Applications:

Used for date input of Kiosks, Industrial platform, Banking, Medical, Gas pumping, Gaming machine and

Security equipment.

Specifications:

1.Key stroke travel

2mm

2.Key actuation force

120g/1.18N

3. Key durability

more than 1 million click time

4.Operation temperature

-10℃ to +50℃

5. Storage temperature

-30℃ to +80℃

6. Relative humidity

30% to 95%

7. Atmospheric pressure

50kPa to 110kPa

8. Power input

+5V/DC, 10mA

9. EMC emission

EN55022(B)

10.Mechanicaltrackball resolution

X:>200dpi, Y: >190dpi

11. ESD resistant

8kV by air contact, 5kV by direct contact

12.Front panel size

320 mm x 110 mm

13.Net weight

1.3kg

Competitive Advantage:

1. As a leader manufacturer since 1995,we have more than 10 years experience in such area.

2. All of our products are with strict QC testing to ensure high quality products for you.

3. With such a mass production, we can provide you the most competitive prices.
