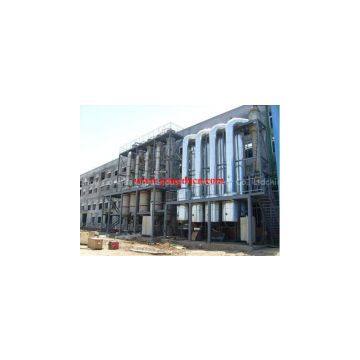

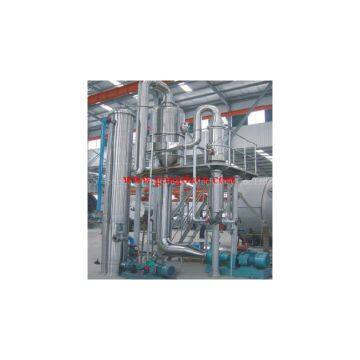

Multiple-effect Evaporation System
Description :
Multi-effect Evaporation system is suitable for food, pharmaceutical, chemical, biological engineering, environmental engineering, waste recycling and other sectors of high concentration, high viscosity, also with insoluble solids to low concentration.Multi-effect Evaporation system can widely used in the concentration of the glucose, starch sugar, maltose, milk, juice, vitamin C, maltodextrin and other aqueous solution. And also widely used in liquid waste disposal such as industry field of gourmet powder, alcohol and fishmeal.
Advantage
Its outstanding advantage is its continuous operation and low temperature evaporation. It saves energy and time with low loss and maximize remain the material's color, fragrance and favor. It can satisfy the continuous production requirements. This product is mainly used in the industries such as food, Chinese and Western pharmaceutical, biochemical pharmaceutical, further processing of agricultural and auxiliary products, health drinks, juice, fine chemical, light industry, PRO-environment etc.
Structure:
Multiple-effect falling film evaporator consists of (first-effect, second-effect, third-effect)separators and evaporators and pre-heaters,condenser and vacuum pump, feeding pump,circulation pump, discharge pump, condensed water pump, pipeline and fittings, etc. It is equipped with CIP spraying cleaning ball, vacuum gauge, thermometer,pressure gauge,and so on.
Features:
1. It can be also used together with the coercive circulation evaporator and crystallizer to deal with the concentration and product crystallization of high viscous and easy scaled material.
2. It is characterized by high efficiency of heat conduction, low power consumption etc.
3. It can widely use the waster heat (such as the drier's hot air and flue gas), the remaining heat (of condensing water, process water and flash steam) to form a waste heat evaporation machine unit.
