Sell Blowing Machine

Model No.:JS-2II
Product Origin:China
Brand Name:JS
Price Terms:FOB Ningbo or FOB Shanghai
Payment Terms:T/T or L/C
Certification:CE

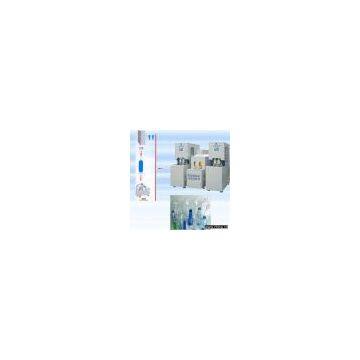

Description:JS-2II semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10-2000ml. It is widely used to produce the carbonated bottles, mineral water, pesticide bottles, oil bottles, cosmetic bottles, and wide-mouth bottles. Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally. The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles. The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine. The machine can be operated in the step-by-step mode and the semi- auto mode. The machine is small with low investment, easy and safe to operate by one person. Main parameter: A: Specifications: 1. Mold gathering strength (kN): 60 2. Mold traveling distance (mm): 135 3. Pulling rising traveling distance (mm): 360 4. Bottle spacing: 120-150 5. Mold hole number (cavity): 2 B: Bottle specifications: 1. Max. Bottle capacity (L): 2 2. Max. Tooth part size (mm): 40 3. Max. Bottle diameter (mm): 95 4. Max. Bottle body height (mm): 360 C: Theoretic production capacity (bph): 700-900 D: Electric power specifications: 1. Total power consumption (kW): 14 2. Thermal rating (kW): 12.8 E: Air pressure specifications: 1. Operating pressure (kg/cm2): 8 2. Low pressure gas consumption (L/min): 300 3. Bottle blowing pressure (kg/cm2): 25 4. High-pressured gas consumption (L/min): 350 F: Machine weight: 1. Machine size (m): 1.62 x 0.67 x 1.68 2. Machine weight (MT): 0.58
