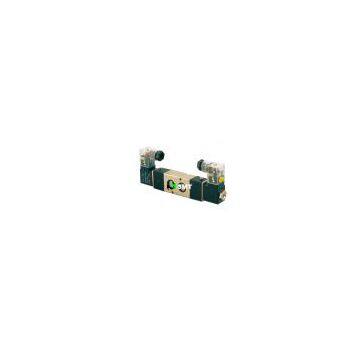

Help CenterNAMUR Valve
Related Products
| Valve series |
4V serie solenoid Namur valve
|
4A series air Namur valve |
|
| Working medium |
Clean Air(40 micron filteration)
|
||
| Acting type |
Intermal iductive type
|
Outside controlled |
|
| Working pressure (MPa) |
0.15~0.8
|
||
| Maximum pressure (MPa) |
1.2
|
||
| Working temperature(℃) |
-5~60℃
|
||
| Voltage range |
-15%~+10% |
|
|
| Standard voltage |
AC: 24V~380V; DC: 12V~110V
|
|
|
| Insulativity | Class F | ||
| Protective class | IP65(DIN40050) | ||
| Maximum acting frequency |
Five times per second
|
||
| Eccitation | 0.05S | ||
| Power consumption |
Continual current |
1/4″~1/2″body 4.8W(AC)/4.2W(DC), 1/8″body,2.8W(AC)/2.5W(DC) |
|
|
Instant current |
1/4″~1/2″body 5.5VA(AC)/4.8W(DC), 1/8″body,3.2VA(AC)/2.8W(DC) |
|
|
| Working style |
5/2, 3/2,N.C. , 3/2 N.O., 5/3 way
|
||
| Thread sizes available |
G1/4″(other panel mounting type 1/8"~1/2" are available)
|
||
| Coil style |
With connector / flying leads |
|
|
