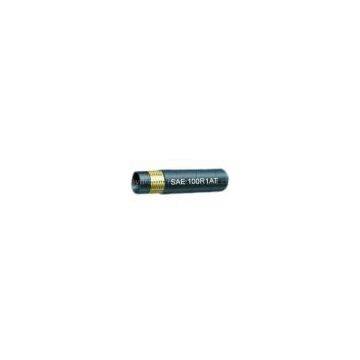

Hydraulic Hose SAE 100 R1AT
| Hydraulic hose SAE 100 R1AT | |||||||||
| Tube: Oil resistant synthetic rubber | |||||||||
| Reinforcement: one high tensile steel wire braid | |||||||||
| Cover: Abrasion and weather resistant synthetic rubber | |||||||||
| Working Temperature: -40℃ to +100℃ | |||||||||
| DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimun Bend Radius | |||
| inch | mm | mm | mm | Mpa | psi | Mpa | psi | mm | |
| 5 | 3/16 | 4.8 | 9.5 | 11.8 | 25.0 | 3630 | 100.0 | 14280 | 89 |
| 6 | 1/4 | 6.4 | 11.1 | 13.4 | 22.5 | 3270 | 90.0 | 12840 | 102 |
| 8 | 5/16 | 7.9 | 12.7 | 15.0 | 21.5 | 3120 | 85.0 | 12280 | 114 |
| 10 | 3/8 | 9.5 | 15.1 | 17.4 | 18.0 | 2615 | 72.0 | 10280 | 127 |
| 13 | 1/2 | 12.7 | 18.3 | 20.6 | 16.0 | 2320 | 64.0 | 9180 | 178 |
| 16 | 5/8 | 15.9 | 21.4 | 23.7 | 13.0 | 1890 | 52.0 | 7420 | 203 |
| 19 | 3/4 | 19.0 | 25.4 | 27.7 | 10.5 | 1530 | 42.0 | 6000 | 241 |
| 25 | 1 | 25.4 | 33.3 | 35.6 | 8.8 | 1280 | 35.0 | 5020 | 305 |
| 32 | 1 1/4 | 31.8 | 40.5 | 43.5 | 6.3 | 920 | 25.0 | 3600 | 419 |
| 38 | 1 1/2 | 38.1 | 46.8 | 50.6 | 5.0 | 730 | 20.0 | 2860 | 508 |
| 51 | 2 | 50.8 | 60.2 | 64.0 | 4.0 | 580 | 16.0 | 2280 | 635 |
WE are a professional manufacturer of rubber products, including hydraulic hose (SAE & DIN), hose assembly, oil seal, hydraulic fitting, etc..
We can accept OEM service as well as design product according to custumers’ requirement.
Our products, well received by our customers, have been exported to more than 10 countries and areas including America, Britain, France, Canada, Iran, and so on.
If you are interested in our products, please feel free to contact me.
| Product Cataloge | |
| Hydraulic Hose | SAE 100 R1A |
| R2A | |
| R1AT | |
| R2AT | |
| 100 R3 | |
| R5 | |
| R6 | |
| R7 | |
| R8 | |
| R9A | |
| R9AT | |
| R10 | |
| R12 | |
| R13 | |
| R15 | |
| R16 | |
| R17 | |
| DIN EN857 1SC | |
| 2SC | |
| DIN EN853 1SN | |
| 2SN | |
| DIN EN853 1ST | |
| 2ST | |
| DIN EN856 4SP | |
| 4SH | |
| Metal Hose | |
| Steam Hose | |
| Oil Seal | |
| Look forward to hearing from you. | |
| Yours faithfully, | |
| Heather | |
| Trade Manager: cn209697985 | |
