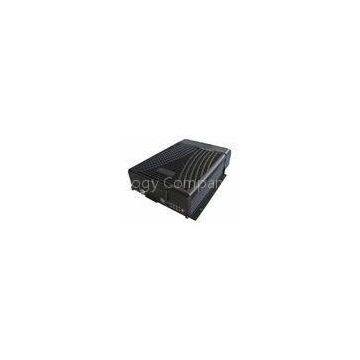

8 Channel Car Mobile DVR RS232 IEEE802.11n Support IP Call , HDD 2.5" 1TB

8 Channel Car Mobile DVR RS232 IEEE802.11n Support IP Call , HDD 2.5
8 Channel Car Mobile DVR RS232 IEEE802.11n Support IP Call , HDD 2.5
Negotiable MOQ: 1 Carton (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
QOHO
Place of Origin:
China
Model Number:
QH-MDVR8108HF
Contact Supplier Request Quote Chat Now
QOHO Technology Company Group
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name QOHO
Place of Origin China
Model Number QH-MDVR8108HF
Delivery Time:Within 5-7 days after received payment
Certification:CE,FCC

8 Channel Car Mobile DVR RS232 IEEE802.11n Support IP Call , HDD 2.5\" 1TB

Description:

8 CH video & audio inputs; 4-CH D1&4-CH CIF H.264 video compression; Support  2.5\" 1TB hard disk or SSD; Embedded a SD slot, support max 128GB SD; Eight alarm inputs,1 alarm output; Three RS485,one RS232; One RJ45 port; Two USB 2.0 port, back USB port is used to support the mirror record or back up record. Front USB port is used to export record file or upgrade firmware or import configure file. Embedded G-Sensor; Built-in GPS,3G(WCDMA / EVDO/HSPA(TD-SCDMA) and External WIFI(optional)-(external:6M/s,100m-150m in open space.It won\'t interfere even there has 3pcs machine to transmit data,more stable.) IEEE802.11n, Up to 300 Mbps physical data transfer speed, satisfy huge data Transmission;

Product Technical parameters:

System

language

Chinese/ English

Operation system

Linux

Operation interface

Graphical User interface(OSD menu)

Password

User /Admin password

Control mode

IR remote control

Video

Video input

8-ch video composite input

Video output

1-ch composite output

Display mode

Single/ 8-ch video

Video compression

H.264 Main profile

PAL:100f at D1/s, NTSC: 120f at D1/s

Video Signal

NTSC,PAL

Audio

Audio input

8-ch audio input

Audio output

1-ch audio output

Recording mode

Audio & Video sync Recording

Phone

Support IP call and analog voice call

Image processing & storage

Image format mode

CIF/HD1/D1 optional

Video stream Standard

ISO14496-10

Video bitrate

CIF: 1536Kbps ~ 128Kbps,4 levels optional.　

Highest:0 level; Lowest: 3 level

HD1: 2048Kbps ~ 512Kbps,4 levels optional.　

Highest:0 level; Lowest: 3 level

D1:  4Mbps ~ 1Mbps,4 levels optional.　

Highest:0 level; Lowest: 3 level

Audio Bitrate

8KB/s

Storage

Built-in a SATA HDD, support HDD Max 2.5\" 1TB;

And built-in a SD card, Support SD card Max 128GB;

Alarm

Alarm input

8 alarm input, below 4V is low level alarm, above 4V are high

level alarm

Alarm output

2 alarm output, output high level:12V

Communication Interface

RS485 Interface

Support 3-RS485 interface

RS232 Interface

Support 1-RS232 interface

WIFI Interface

Support RJ45 interface external 802.11b/g
