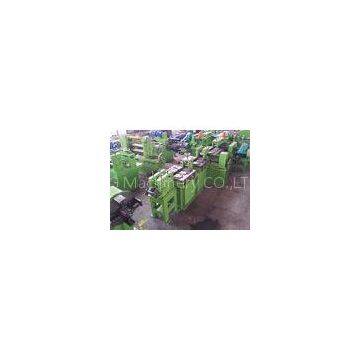

Hydraulic Flat Bar Straightening Machines With 7 Roller-Straightener
Applied to: stainless steel Flat bar thickness:4mm Flat bar width: 60 Line speed: 30m/minDescription:
The whole flat bar machine is used to straightening the coil flat bar and deburing and chamfering according to different requirements as well as doing the fixed length cutting.
We can design and manufacture the machine as per the specific needs of different customers to meet their different requirement.
Below are the parts of the whole line
1. Double-head decoiler
2. 7 roller-straightener
3. Chamfering and extrusion machine
4. 2 roller-pinch and press device
5. Longitudinal straightener
6. Flat surface straightener
7. Hydraulic tracking cutting machine
8. Fixed length receive table
9. Electrical control system
Applications:
Specifications:
1. Technical parameters:
A. Applied to: stainless steel
B. Tensile strength:δb≤450Mpa,δS≤260Mpa
C. Flat bar thickness:4mm
D. Flat bar width: 60mm
2. Finished parameters:
Precision of width: +0.3~-0.9mm Precision of fixed length:0~+5mm Bending:≤2.5mm/m pitch of cutting: ≤2mm3. Other parameters:
I. Line speed: 30m/min
J. Production: incessantly.
K. Operation person: 1 technician and 1 common worker.
L. weight of the whole line:about 5T
M. the length of the line: around 15m
Competitive Advantage:
This flat bar machine with the price advantage and easy to operate.
It combines the function of straightening, deburring, chamfering and cutting to make sure the flat bar with high quality.
The double head decoiler can make sure the high efficiency.
