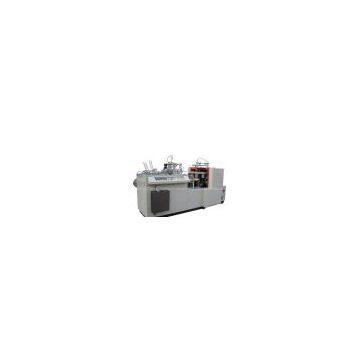

Paper Bowl Machine
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | DingCheng (XiaMen) Machinery | Place of Origin | China | |
| Model Number | DC-PBM-2 |
Product Description
I . Introduction
Model name : DC-PBM-2
This machine is used to produce paper bowls as per in the picture shows.
II. Function and Features:
DC-PBM-2 type double sides PE coated paper bowl machine is devoloped on DC-PBM-1 single side PE coated paper bowl machine. In this type bowl machine,you can produce both single side PE coated paper bowls and double sides PE coated paper bowls.
This machine also runs a whole procedure of paper-feeding , bowl-fan-wall sealing, oiling, bottom punching, heating, rolling, rimming, rounding and tripping. It is an idea equipment of producing soup bowl, bigger paper cups and other large food cone-shaping containers.
This machine also runs a whole procedure of paper-feeding , bowl-fan-wall sealing, oiling, bottom punching, heating, rolling, rimming, rounding and tripping. It is an idea equipment of producing soup bowl, bigger paper cups and other large food cone-shaping containers.
Double sides PE coated paper bowls are widely used as large capacity container: soup bowls, noodle bowls, handy container and other fields
III.Technical Parameters:
- Paper Bowl Sizes: 20,25,30,35,40,45,50,60 OZ or other sizes.
- Row material: Single and Double sides PE(polyethylene) film coated paper
- Suitable paper weight: 180--450 gsm (Recommend 240--350 gsm)
- Speed of making paper bowls: 30--45 pcs per minute
- Limit of temperature control: 0--400 Centigrade
- Total power: 6 KW
- Power source: 380 V,220V 50 Hz,60 Hz ( For your reference,it depends on the power situation in your place)
- Whole machine weight: 2400 kg
- Appearance size(L x W x H): 3000 x 1300 x 1600 mm
- Note:We can make the paper bowl machine suitable for your requirement.
IV. Main Parts Configuration:
- Automatic control adopts optically controlled non-contact switch,
- Micro-controlled transducer,
- Step-less speed adjustment,
- Paper Bowl-fan-wall body sealed by Ultrasonic System,
- Paper Bowl bottom sealed by heater (or hot air station),
- Full automatic,
- Easy changing molds produce different sizes paper bowls,
- Easy operating by operator (one operator is enough),
- Easy maintenance with minimum cost,
- Cheap operating cost and low investment,
- Amelioration:Air compressor aren't required for this type paper bowl machine when the paper weight under 300gsm.
V. Export Details
1. Delivery time: 45 days (It takes time to ensure the processing precision, assembling precision, etc. Of course, the delivery time can be discussed as the case may be.)
2. Load port: Xiamen port in Fujian Province
3. Packing: In standard export wooden cases
4. Container: 1 x 20 feet container (It depends on the quantity of the machines you buy ).
5. Machine installation and operation training: The seller should dispatch professional technicians and engineers to buyers plant to install the machine and train the workers. The round air ticket, accommodation and salary should be paid by buyer.
6. Warranty period: One year(Except easy damaged parts), and will provide long term services including providing spare parts at low price and will heart and soul help the buyer to solve any problem may occur.
7. Our company also provides the raw material to match with the machine.
