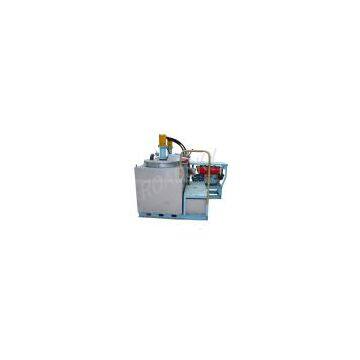

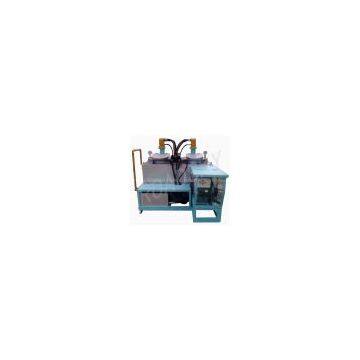

Help CenterHydraulic Double Tank Thermoplastic Pre-heater
Related Products
-
RS5 Thermoplastic Lines RemoverUS$ 10000 - 10000MOQ: 1 Piece -
RS7 Series Thermoplastic Lines RemoverUS$ 10000 - 10000MOQ: 1 Piece
-
RS8 Series Thermoplastic Lines RemoverUS$ 10000 - 10000MOQ: 1 Piece
-
Truck-mounted Cold Solvent Road Marking MachineUS$ 100000 - 100000MOQ: 1 Piece
-
Hand Push Thermoplastic Road Marking MachineNegotiableMOQ: 1 Piece
The machine has the heating means with liquefied gas combustion system. When heating thermoplastic paint, the speed of mixing blade is even. The kettle is all around enclosed with heat retaining cotton so that the inner of the kneader has the character of good heat retaining.
Hydraulic double cylinder thermoplastic kettle produced by our company consists of the dynamic transmission system,kneader body,kneader assembly,stirring device,feed gate,draining gate, gas combustion system and etc. The machine is reasonable in structure and its performance is better than the domestic similar products. Its operating system is centralized and easy to be mastered with infinite speed variation of stirring. The two kneaders may operate independently with a smooth transmission,low noise and high thermal efficiency which can supply thermoplastic paint required by normal operation of two hand push thermoplastic marking machines. It is ideal equipment for thermoplastic paint heating and melting with good double-layer insulating property and even speed of stirring.
The Machine is double cylinder thermoplastic kettle with large volume of mixing kneader. A single cylinder thermoplastic kneader may be made as required.
Main Technical Specifications
Size (L×W×H): 2,100×1,700×1,600 mm
G.W.: 1200kg
Volume of kneader: 2×500 kg (2×400 kg; 2×600 kg; 2×700 kg)
Material Temperature: 180℃-220℃
Diesel power: 15P Electricity-powered cooled engine
Bottom: Boiler plate, Bottom thickness: 6mm
Heating-out Method: Liquefied petroleum gas (natural gas)
Rotational speed: 20-100r/min.
Hydraulic system pressure: 5 MPa
Working Pressure: 4-5MPa
