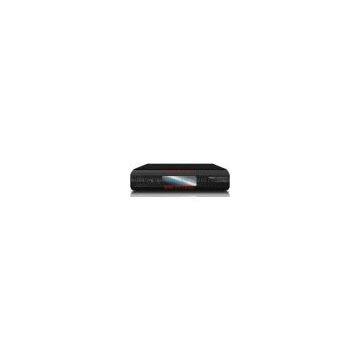

Opticum 7300 CI2CX
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
FOREVER
Place of Origin:
China
Model Number:
7300
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Brand Name
FOREVER
Place of Origin
China
Model Number
7300
HD&SD DVB-S+2CA(Conax)+CI+2USB(PVR)+PACTH+2 SCART
Main Features:
- 2 Card Reader slots (Conax embedded)
- 1 CI Slot for CAM modules
- Multi Pictures
- Zoom in
- Fully Compliant with DVB-S and MPEG2
- Plug & Play Self Installing Programmes by Automatic Scaning
- High sensitivity Tuner
- QPSK Demodulation, Symbol Rate: 2-45Ms/s
- 8000 programmable Channels, 6000 transponders
- Software update by USB and RS-232 Serial port
- PAL/NTSC convertible
- Aspect ratio adjustment 4:3, 16:9
- DISEqC 1.0; 1.2 & USUALS
- Multi-language OSD
- 7-days EPG
- Video/Audio outputs:
- HDMI
- RS232 Serial port
- Modulator
- YPbPr component
- 2x SCART
- RCA video RCA audio L+R out
- SPDIF optical
- USB 2.0 up to 2TB HDD
- General
- System standard: Fully MPEGII/DVB Compliant
- Channel Storage: 8000 TV and Radio Channels
- Input Frequency: 950~2150Mhz
- RF Input level: -65~-25dBm
- LNB Control: DiSEqC1.0/1.2
- LNB Power:13V/18V (Max, 500mA)
- LNB tone switch: 22KHZ
- Waveform: QPSK (SCPC, MCPC capable)
- Symbol rate: 2~45Mbps
- A/V Mode
- Video format: MPEG-II Main profile/Main level
- Audio format: MPEG-II layer I&II
- Aspect Ratio: 16:9, 4:3
- Audio sampling rate: 32,44.1, 48kHz
- Audio Type: Mono Dual Mono, Stereo, Joint stereo
- Graphic display: 720x576(PAL), 720x480(NTSC)
Microprocessor & Memories
- Processor: 200 MIPS based CPU
- RAM: 64Mbits
- FLASH: 16Mbits
- Power & Environment Condition
- Supply Voltage: Free Voltage (100~250V AC, 50/60Hz)
- Supply Power: Max.15 W (with 1 single LNB)
- Operating temp: 5C~45C
- Physical Specification
- LED display: 4Digits
- Weight: 2.0Kg
- Dimensions: 300(W) x 235(D) x 65(H)mm
- Connection
- Satellite IF input: F-type (Digital)
- Satellite IF loop out: 950-2150MHz
- RS232: 9 way D Rs232 DCE serial port
- Scart: TV / VCR (Optional)
- Video: Composite Video I/O, RGB, CVBS
- Audio: Audio left, Audio right
- Control Output (Optional): 0/12V out
- Modulator (Optional): UHF CH 21-69 Adjustable
- S/PDIF (Optional): Digital Optical Audio Output
