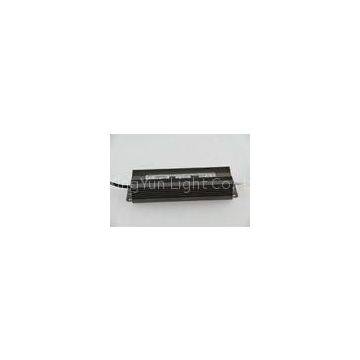

100W 3200mA Constant Current LED Driver with CE RohS
Quick detail:
Power: 100W
Input: AC110-264V
Output: DC 12V 24V
Size: 209*70*44
Certificate: CE&ROHS
Warranty: 2 years
Description:
1. Protections :Short circuit/Overload/Over temperature
2. Cooling by free air convection
3. IP67 design for indoor or outdoor installations
4. 100% full load burn-in test
5. Suitable for LED lighting
6. Products through CE& ROHS certification
7. Two years warranty
Specifications:
|
Model |
HF-100-36-20-3A00 |
|
|
Output |
Dc Voltage |
20~36V±5% |
|
Rated Current |
3200mA |
|
|
Rated Power |
100W |
|
|
Ripple&Noise(Max) |
200mV |
|
|
Current Tolerance |
±20mA |
|
|
Setup,Rise Time |
100ms/220VAC |
|
|
Hold Up Time(Typ.) |
||
|
Input |
Voltage Range |
170~250VAC |
|
Frequency Range |
47~60Hz |
|
|
Power Factor(Typ) |
PF>0.6/220VAC |
|
|
Efficiency(Typ) |
83% |
|
|
Ac Current(Typ) |
0.63A/235V |
|
|
Inrush Current(Typ) |
Cold-start current 3.2A/235V |
|
|
Protection |
Short Circuit |
Protection type:recovers automatically after fault conditions is removed |
|
Overlaod |
Overload protection@145~160%above peak rating |
|
|
Over Temperature |
protection typer:shut down o/p voltage.re-power on to recover |
|
|
Environment |
Working Temp |
-30~ +60℃(Refer to output load derating curve) |
|
Working Humidity |
20~90%RH no-condensing (Waterproof) |
|
|
Storage Temp Humidity |
-40~ +80℃,10~90%RH |
|
|
Safety&EMC |
Safety Standards |
CE Mark(LVD),IP67 |
|
Withstand Voltage |
I/P-O/P:1.5KVAC IP-GND:1.5KVAC |
|
|
Emc Test Standards |
EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005 |
|
|
NOTE |
1.All parameters NOT specially mentioned are measured at 220VAC input,rated laod and 25℃ of ambient temperature. |
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a12\'\'twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor. |
||
|
3.Tolerance:includes set up tolerance,line regulation and load regulation. |
Features:
Universal AC input/Full range
Protections: Short circuit/OLP/OVP
Meet EMC standards
100% full load burn-in test
High efficiency,long life and high reliability
IP67 design for indoor and outdoor
100W 3200mA 60Hz Constant Current LED Driver 20V - 36V DC with CE RohS
Application:
It’s suitable for an extremely wide range of applications, includi
