Sell Drilling Machine

Model No.:XY-1
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:

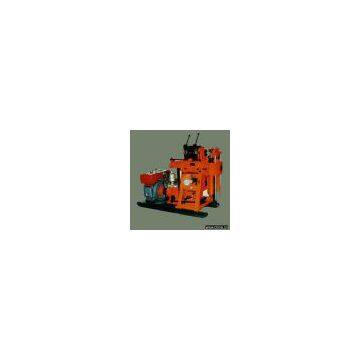

Description:The XY-1 model drill is a specially-designed portable machine. 1.Its application ranges <1> This drill is applicable for general survey,geophysical prospecting,high-way building construction foundation drilling and blast hole drilling etc. <2> The drill, with the diamond drill bit,alloy bit,steel sand and steel shot bits etc.. Can be used to drill different ground layers. <3> It can be used to drill 2-9 grades sand clay soil and bed rock etc. <4> Its rated drilling depth is 100m, the deepest not more than 120m; the rated initial hole diameter 110m; the biggest 130mm; the final hole diameter 75mm. 2.Characteristic <1> This machine is equipped with hydra-automatic feed mechanism for high drilling efficiency and reducing labor intensity of the user. <2> It is designed with the covenant and reliable hydra-chucking unite instead of slip bowl to ensure drilling from stopping when changing the pipes. <3> It's equipped with a hole bottom pressure gauge to conveniently keep the information of the hole insider. <4> It's close levers are for covenant and reliable operation. <5> It's compact in structure.drill,water pump and diesel engine are all installed on one base frame resulting in space-saving. <6> It's light in weight and easy in disassembling for convenient transportation. <7> The insider of the reduction casing is equipped with an oil pump forced lubricating turbine rod, and there is an air fan on its outsider to keep the oil temperature within 85oC.
