4 Output Ports CATV Optical Node

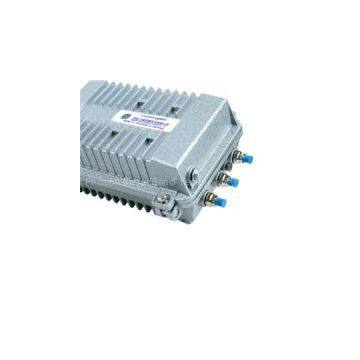

Photon Broadband Technology Co.,Ltd is one of the leading China 4 output ports catv optical node manufacturers, welcome to wholesale cheap 4 output ports catv optical node, fttx from our factory.Quick DetailsPTR3204SPlace of Origin: Guangdong, China (Mainland)Brand Name: PHOTONModel Number: PTR3204SWavelength: 1100~1600 nmOptical Power Input Range: -9~+2 dBmOptical AGC Range: -7~ -1 dBmFlatness: ≤±0.75 dBOptical Input Return Loss: ≥45 dBBandwidth: 870-1000MHzPower consumption: <40 WNominal Slope: 0~1 dBLaser Type: FP, DFB,CWDMDimensions: 320 *222 *140 mm .Packaging & DeliveryPackaging Details:cartonDelivery Detail:7-15daysDescriptionCATV Optical node PTR3204S optical node is a four output ports compact fiber deep node specially designed to meet the growing needs for FTTxnetwork. It provides advanced features and benefits to help operators reduce operating expenses for its applications of node deployments and configuration in FTTC/FTTB architectures. PTR3204S optical node is mainly used in the building of CATV network in cities and towns. It makes optical signal converting to wide-band RF signal. The optical node can been added the return path transmitter module (optional), which can achieve network two-way communications. Besides, it has network management system which enables distant monitoring and managing.Features1.870MHz/1GHz bandwidth2.1310/1550nm two operation windows3.Four passive ports for RF signal out4.Output level up to 108dBuV5.Plug-in equalizer and attenuator, which can regulate output slope and level based on requirement6.One return path transmitter module7.FP, DFB or CWDM return path offerings8.Single power module with 60VAC or 220VAC optionSpecificationsDescriptionUnitValueConditions / NotesOptical Specifications (Forward Path)Wavelengthnm1100~1600Optical Power Input RangedBm-9~+2Optical AGC RangedBm-7~ -1Optical Input Power Test PointV/mW1ResponsivityA/W0.85/0.951310nm/1550nmNoisepA/Hz<8Optical Input Return LossdB≥45RF Specifications (Forward Path)Pass BandMHz45~870Without diplexFlatnessdB≤±0.75Nominal SlopedB0~1Nominal Output Level.dBμV4*108 max@870 MHz, 4% OMI, -1 dBm optical inputRF Output Level Test PointdB-20±1.5Relate to RF output portReturn LossdB≥1645~550MHz≥14550~870MHzCNRdB≥5159 PAL CW carrier, 1310nm transmitter, 4.0% OMI, 10 km optical fiber plus attenuator, -1 dBm optical input power, 102 dBuV output level at 870MHz with 12 dB slopeCSOdBc≥60CTBdBc≥65Surge ComplianceV/A6000/3000Surge (1.2/50us),IEEE62.41 and IEC 61000-4-5Optical Specifications (Return Path)Laser TypeFP, DFB,CWDMWavelengthnm1100~1600Optical Return LossdB≥40FP LaserWavelengthnm1310±20Output PowerdBm-3±0.50±0.5DFB LaserWavelengthnm1310±201550±20Output PowerdBm-3±0.50±0.53±0.5CWDM LaserWavelengthnm1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611ITU-T G.694.2Output PowerdBm3±0.5Optical Return LossdB≥40User Interface (Return Path)Laser Modulation Level Test PointdBmV10±1.08% OMI at room temperatureRF Input Test Point ConnectorGSK-typeLaser Modulation Level Test Point ConnectorGSK-typeOptical ConnectorSC/APCOptional: FC/APC, E2000Return Path Optical Power IndicatorOne-colored LEDHousingDimensions ( L x W x H)mm320 x 222 x 140Weightkg< 3
