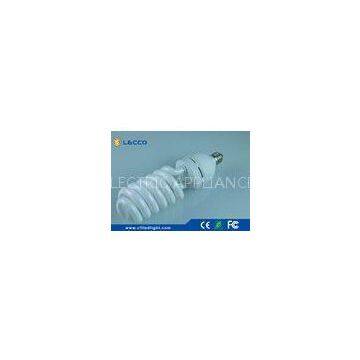

High Efficiency Compact Flourescent Lightbulbs , Half Cfl Spiral Bulbs High Bay Light

Delivery Time:15 days
Certification:CE RoHS FCC

Half Spiral 65W CRI > 80 Energy Saving Lamp High Bay Light Lifetime 8000H


Quick Details

1 . Power : 65W

2 . P.F. : > 0.9

3 . Power consumption : < 10%

4 . Lead free glass tube

5 . Compact type , integrate the ballast in the lamp

6 . 100% triphosphor A - grade powder

     1 ) Luminous efficency : > 65 lm / w

     2 ) Brightness maintance : > 80% after 2000H

     3 ) CRI : > 80 Ra

     4 ) SDCM : < 5

7. Circle : 6.5T

8 . Tube Diameter : 17mm

Lamp parameters

Type	Half Spiral
Tube Diameter	Φ 17mm
Wideth	78mm
Circle	6.5T
Color Rendering Index	> 80 Ra
SDCM	< 5
Color Temparature	2700K - 6400K
Luminous Efficency	> 65lm / w
2000h Luminous Depreciation	<15%
Responsive Time	< 0.5s
Turn on off time	> 10 000 times
Luminous Decay	Less than 15% at 2000hrs
Powder	100% A - gradeTriphosphor
Power	65W
Power Factor	> 0.9
Working Voltage	110V - 127V / 185 - 265V
Transister / Capacitor	Huajing / Aishi
Size	E27
Materials	Nickelplated Aluminum
Type	Soldering
Wideth	72mm
Materials	PBT
PBT plastic cover with middle cover
Working Temp. :  - 30 ℃ to + 40 ℃
Lifetime : > 8000H
Lumen : > 3000 LM

Description

1 . Turn on – off time is more than 12 000 times .

2 . No mercury vapor , using solid mecury technology , Hg < 3mg .

3 . Using PBT plastic cover, PBT have two advantage : ① Inflaming retarding ② High temperature resistance .

4 . Using nickleplated aluminum base , very good to avoid getting rusted .

5 . For the pack , we have color box , single blister , double blister .

6 . The key components is the electrolytic capacitor and transister , we are choosing GRP or AISHI for our electrolytic capacitor and choosing HUAJING as our transister .

7 . Easy to apply , can change traditional incandescent bulbs directly , the ballast in integrated in to the lamp .

8 . All products are output strictly under ISO 9001 Quality Management System and CE satisfied .

9 . Voltage : Both 110 - 130V and 220 - 240V available with 50 / 60Hz ; Wide range voltage is possible .

Competitive advantage

1 . In the mass production , our QC will take selective examination on every step , such as Plug-in , Wave soldering , PCB test , Tube glue , Assembly , Print , Ageing , Packing .

2 . we are testing every lamp before packed in the cartons .

3 . In the warehouse,our QCs will take sampling inspection before load the container , if not qualified with the AQL , we will rework .

4 . After laoding the container,we will trace the life time of ech order,we will pick 10 pcs of each item to light in the ageing room till the lamp die , so we can trace down the real life time of each order .

Application

Widely used in home & commercial Lighting , always using together with the downlight fixtures , applying in office , Hallway , Hotel , room , shop , ect .

Trade terms

1 . Payment term : T/T , 30% deposits in advance , 70% balance before shipment .

2 . Samples can be provided for free , but the express fee need to be payed for the first time , and can be returned after placing the first order .

3 . Shipping freight are quoted under your requests .

4 . Shipping port : Shanghai / Ningbo .

5 . Delivery time : OEM your brand, 30 days after confirming the packing design,our own brand in 3 days

6 . If not mentioned , all of our price is FOB price , and also can be CFR or CIF
