Help CenterVE-30RFM HDMI to RF Matrix Extender
Related Products
-
HVR-7000 Quick-easy High Definition Video RecorderNegotiableMOQ: 1 Piece -
WT-2400 Series Light Weight Wireless Tour Guide System (Rechargeable)NegotiableMOQ: 1 Piece
-
Digital MP3 Music Player/ RecorderNegotiableMOQ: 1 Piece
-
Digital MP3 Recorder (PA System)NegotiableMOQ: 1 Piece
-
Network Conference MicrophoneNegotiableMOQ: 1 Piece
Viedo Link : https://youtu.be/PQIptioiECk

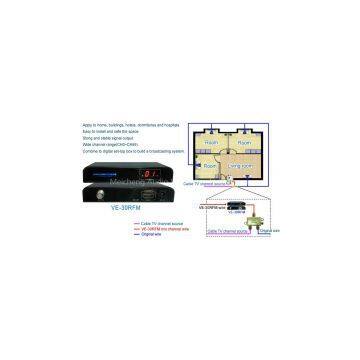

VE-30RFM HDMI to RFMatrix Extender isdesigned to convert HDMI signal to HD digital TV signal based on DVB-T CATVsignal, it uses 64QAM mode to realize the HD digital TV signal conversion andtransmit via coaxial cables for long distance.
With the advantages of good image quality, strongresistance to interference and hundreds channels available. It’s easy to buildone-to-multi or multi-to-multi media matrix through extender, can be widelyapplied in CCTV, outer large screen, shopping mall advertisement, media educationand digital KVM fields etc.
To solve problems such as image pixilated, distortion, and transfer failure. Applyto commercial ads on screen walls, automatic industry digital board, medicalfacilities, the system to supervise and control multimedia education etc. Inorder to deal with the demand of digital media signal’s long distancetransmission. The system is designed by RF transfer, providing more flexiblechoice for installation and operation.
Features
External hardware, no need to install other software or driver, satisfied to different places.
It can extend HDMI signal through a 75Ω coaxial cable or better coaxial cable between transmitter and receiver.
Both transmitter and receiver have LED indicator (Blue in the front, LINK indicator in rear). There is “OSD” gauge on the end of monitor, making a perfect state of connecting system.
Image signal adjust automatically –According to the distance, the video signal can adjust automatically when the using cable shorter than 100m, it needs to connect an attenuator at least 20dB in series to get image output.
Support HDMI and DVI transfer interface.
Support HDCP.
Support 36-bit Deep Color.
Support VGA (640×480) ~ WUXGA (1920×1200) PC resolution.
Support 480i ~ 1080p TV resolution.
The longest support distance of HDMI input/output is 5 meters
Transmission distance up to 700 meters by SYV-75-5 coaxial cable and no need amplification
Connect CATV distributor or CATV coaxial cable. Operated by panel monitor and button, the extender can connect 100 transmitters and 237 receivers at the same time. Makes matrix and connection easier than before.
Fit on every LCD monitor/LCD TV/PDP/Projector, can be used in every occasion.
Viedo: /watch?v=PQIptioiECk&index=2&list=PLslR1l6Dm51LgnroXCDM30c6-PqzBZZeB
