Certification:CE,RoHS, VDE,UL,CUL,LPCB

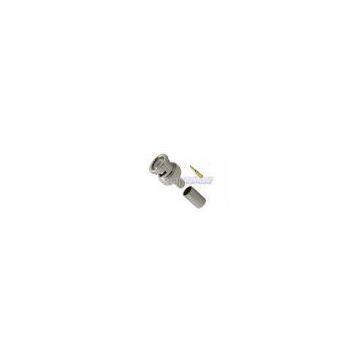

Nickel BNC Coaxial Cable Connectors with Gold plated for Radio / TV
Quick Detail:
BNC Plug Solderless Connectors - 50 Ohm
BNC Male Crimp Connectors - 50 Ohm & 75 Ohm
BNC Male Twist On & Clamp On Connectors -50 Ohm & 75 Ohm
BNC Male Angled Connectors -45 & 90 Degree Plugs-50 & 75 Ohm
BNC Female Connectors - Crimp,Twist On, Bulkhead - 50 Ohm & 75 Ohm
BNC Female Connectors - Crimp,Twist On, Bulkhead - 50 Ohm & 75 Ohm
Reverse Polarity BNC Plug Crimp Connectors
Reverse Polarity BNC Jack Crimp Connectors
Captive gold plated center pin requires no soldering or crimping
Nickel plated brass body ideal for outdoor use
Competitive price with good and stable quality
Quickly and professionally answer for the inquire
Description:
BNC Connectors for coaxial cable Gold plated center Nickel plated Body is a miniature quick connect/disconnect RF connector used for coaxial cable. It features two bayonet lugs on the female connector; mating is achieved with only a quarter turn of the coupling nut. BNC Connectors are ideally suited for cable termination for miniature-to-subminiature coaxial cable (e.g., RG-58, 59, to RG-179, RG-316). They are used with radio, television, and other radio-frequency electronic equipment, test instruments, video signals, and were once a popular connector for 10BASE2 computer networks. BNC connectors are made to match the characteristic impedance of cable at either 50 ohms or 75 ohms. It is usually applied for frequencies below 4 GHz [1] and voltages below 500 volts.
Applications:
Suitable for cable termination for miniature-to-subminiature coaxial cable
■ RADIO
■ TELEVISION
■ RADIO-FREQUENCY ELECTRONIC EQUIPMENT
■ TEST INSTRUMENTS
■ VIDEO SIGNALS
■ 10BASE2 COMPUTER NETWORKS
Specification
| BNC Types | |
|
BNC Plug Solderless Connectors - 50 Ohm |
BNC Plug Solderless Crimp for 195-Series Low Loss Cable |
|
BNC Male Crimp Connectors - 50 Ohm & 75 Ohm |
50 Ohm BNC Crimp Plug for RG58U (20 AWG C.C.) Cable |
| 50 Ohm BNC Crimp Plug for RG58 Plenum (20 AWG C.C.) Cable | |
| 50 Ohm BNC Crimp Plug for RG58, 195-Series Cable | |
| 50 Ohm BNC Crimp Plug for RG142/223/400 Cable | |
| 50 Ohm BNC Crimp Plug for Belden 7807 Cable | |
| 50 Ohm BNC Crimp Plug for Belden 9913 Cable | |
| 50 Ohm BNC Crimp Plug for RG174 Cable | |
| 50 Ohm Fully Insulated BNC Crimp Plug and Boot, RG58 Cable | |
| 75 Ohm BNC Crimp Plug for RG187 and CTL Cable | |
| 75 Ohm BNC Crimp Cable Plug, 2-pc. or RG6-Q Cable | |
| 75 Ohm BNC Crimp Plug for RG59 Teflon Cable | |
| 75 Ohm BNC Crimp Plug for RG6 Cable | |
| 75 Ohm BNC Crimp Plug for RG59 Cable | |
|
BNC Male Twist On & Clamp On Connectors -50 Ohm & 75 Ohm |
50 Ohm BNC Non-Crimp Plug for RG58U Cable |
| 50 Ohm BNC Twist On Plug for RG58U Cable | |
| 75 Ohm BNC Twist On Plug for RG59 Cable | |
| 75 Ohm BNC Twist On Plug for RG6 Cable | |
|
BNC Male Angled Connectors - 45 & 90 Degree Plugs- 50 & 75 Ohm |
50 Ohm BNC Crimp Plug, Right Angle for RG58, LMR®195 Cable |
| 50 Ohm BNC Crimp Plug, Right Angle for RG174, 188, 316 Cable | |
| 75 Ohm BNC Crimp Plug, Right Angle for RG59 and RG62 Cable | |
|
BNC Female Connectors - Crimp,Twist On, Bulkhead - 50 Ohm & 75 Ohm |
50 Ohm BNC Crimp Jack for RG58 Cable |
| 50 Ohm BNC Crimp Jack for RG174/188/316 Cable | |
| 50 Ohm BNC Crimp Jack for RG223 Cable | |
| 75 Ohm BNC Crimp Jack for RG58 Cable | |
| 75 Ohm BNC Crimp Jack for RG174/188/316 Cable | |
| 75 Ohm BNC Crimp Jack for RG223 Cable | |
|
Reverse Polarity BNC Plug Crimp Connectors |
RP BNC Crimp Plug for 400-Series Cable |
| RP BNC Crimp Plug for RG58, 195-Series Cable | |
|
Reverse Polarity BNC Jack Crimp Connectors |
RP BNC Crimp Jack for RG |
