900 / 2000 / 4000 kg Electric Fork Fixed Hydraulic Lifting Platform

FOB Price

Negotiable / Meter

1 Meter(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SHENXI		Place of Origin	China
Model Number	SJG

Product Description

Delivery Time:8 working days
Certification:CE & SGS

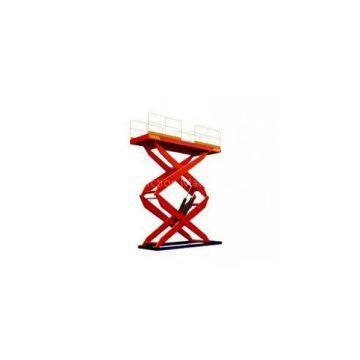

900 / 2000 / 4000 kg Electric Fork Fixed Hydraulic Lifting Platform

Descrition:
　The fixed hydraulic lifting platform is a kind of lifting equipment for various materials and environments with a stable lifting performance. It is mainly used for delivering goods between places of an altitude difference in the production line, feeding and blanking, adjusting the height of the work piece when installed, feeding the feeder machine in a higher place, lifting components when the large equipment is installed, loading and unloading materials for the large bed and goods in the storage and loading yard together with transport vehicles such as fork trucks.
According to the operation requirement, this fixed hydraulic lifting platform can be equipped together with other attachments without the limit in number and in the combination method, thus to achieve a better running effect.

Applications:
-mass goods transporting for assembly lines between areas of different heights
-for raising or lowering materials in assembly lines
-used for adjusting the height of work pieces
-transporting materials for loading machine at height
-to lift machine parts while assembling large equipment
-loading and unloading cargos in warehouse

Specifications:

Model	Rated load kg	Min height mm	Lifting stroke mm	Max height mm	Dimension of platform L3W (mm)	Lifting time (s)	Voltage v	Power of motor (kw)	Weight of whole kg
Fixed hydraulic lifting platform(Fork)
SJG0.9-0.5	900	200	500	680	1220*700	15	380v/50hz	0.75	400
SJG0.9-0.85	900	200	850	1030	1220*700	16	380v/50hz	0.85	400
SJG0.9-0.97	900	230	970	1200	1500*700	19	380v/50hz	1.5	450
SJG2-1.2	2000	230	1200	1430	1680*1000	31	380v/50hz	3	600
SJG0.9-0.9	900	230	900	1100	1300*1000	31	380v/50hz	1.5	500
SJG0.9-0.85	900	230	850	1080	1400*1000	31	380v/50hz	1.5	520
SJG2-1.2	2000	250	1200	1410	1680*1000	39	380v/50hz	3	620
SJG4-1.2	4000	340	1200	1540	2000*1000	56	380v/50hz	5.5	1500
SJG4-0.5	4000	480	500	980	2800*2000	20	380v/50hz	5.5	2500
SJG1-0.5	1000	830	500	1330	3500*1800	17	380v/50hz	22	5500
SJG1-2.8	1000	460	2800	3260	2200*1000	25	380v/50hz	1.5	600
Fixed hydraulic lifting platform(Dual fork)
SJG0.8-1.2	800	300	1200	1500	1200*1000	16	380v/50hz	1.1	420
SJG1-1.7	1000	350	1700	2050	1500*1000	28	380v/50hz	1.5	600
SJG2-1.2	2000	335	1200	1535	1500*1000
