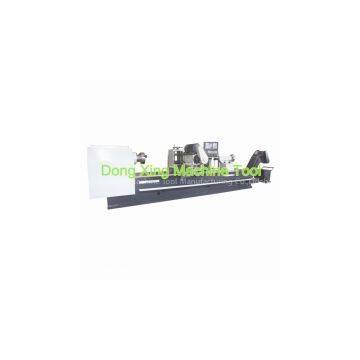

CNC Horizontal Special Screw Rod Milling Machine

 1.The whole body design:three guide rail are high frequency quenching hardened rail, which have good rigidity,high precision,stable and reliable.

2.Machine tool appearance modelling is beautiful,which has clear lines,external visual and clear smooth.The operation place is appropriate,and the agreeableness is good.

3.Spindle running is dived by worm gear and worm.Servo motor straight league worm.With no clearance between worm and worm gear meshing mechanism,the machine tool can realize high precision accurate degree.Spindle bearings use grease lubrication,which can be high durability,without daily lubrication maintenance.

4.The machine tool control system is GSK, we also can according to customers specific needs configurating other system. Three linkage system can realize five coordinate, namely, the X axis and Z axis, three linkage C axis (axis).

5.The machine tool is equipped with automatic chip removal device and pick up car, to meet user needs.

Max.diameter to be machined:350mm

The width of guide rail:800mm

C axis chuck:400mm

C axis feed speed:30r/min

C shaft speed: 0.1-60(infinite)
