Thread Rolling Machine 3 Rolls

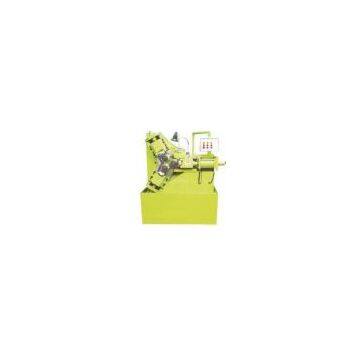

Hydraulic Thread Rolling Machine Three Roll Type (Specification)The 3 rollers HU-3R rolling machine operates hydraulically. The simultaneously and concentricity of three forces at 120º assure stability of the work piece during the rolling and as a consequence the maximum geometrical precision of the work piece. The elimination of the support blade consents a better finishing of the piece and the execution of particulary delicate profiles. The machines is suitable for rolling pipes, lapping work, threading with a high class precision and profor mass duction of Scaffolding pipe jack and solid jacks screws etc. The maximum values specified above can not be achieved simultaneouslyH3R - 50H - 100H - 120Work Range Roll Dies Motor 3 Phase AC Coolant PumOut side diameter Thread length in feed Thread length through Feed Max. thread pitch Max. Out side dia Max. In side dia Max. width For roll spindle For hydraulic system15-50 mm 50 mm Indefinite 0.8 - 3 mm 140 40 505/8”-2” 2” Indefinite 32-8 TPI25-75 mm 75 mm Indefinite 0.8-6 mm 160 54 801”-3” 3” Indefinite 32-4 TPI5 H.P. 3 H.P. 0.1 H.P.10 H.P. 5 H.P. 0.1 H.P.Extra Accessories : All Kinds of Thread Roller, Work Rest Blade (Guide), other special equipments are available on request at extra cost. Machines are also available as per your specific requirements FOR MORE INFORMATION SEE OUR WEB http://nationalcuttingtools.page.tl E-mail id : nationalcuttingtools@yahoo.comOR FOR QUICK RESPONSE CALL US: +919888210800 PLEASE FEEL FREE TO CONTACT US.
