1000W DC48V Outdoor Cabinet Air Conditioner, Variable Speed Air ConditionerInverter

Delivery Time:7-15 working days
Certification:ISO9001, CE, 3C, FCC, TLC

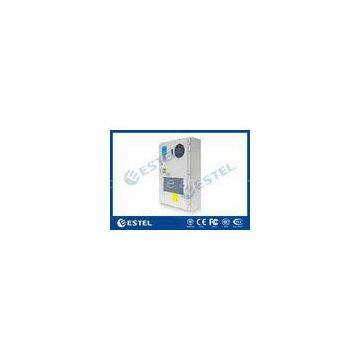

DV48V 1000W Air Conditioner For Outdoor Telecom Cabinet With High Cooling Capacity

Quick Details:

Place of Origin: Shenzhen, China (Mainland)	Rated Cooling Capacity : 1000W
Brand Name: ESTEL	Rated Heating Capacity:300/500W (optional)
Model Number: TC06-100ZEH/01	Dimension H×W×D: 695×424×221mm
Product Name: DC48V Outdoor Cabinet Air Conditioner	Input Voltage: DC48V, variable frequency
Certification:ISO9001, CE, 3C, FCC, TLC	Rated Input Current: 6.5A
Cover Material: galvanized steel	Rated Input Power: 312W
Color: grey	Working Temperature: -20°C ~ +55°C
Protection Level: IP55	Noise: ≤65dB
Installation Mode: door mounted	Refrigerant: R134a
Support OEM	Cooling Method: DC48V compressor, active cooling

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Paypal, etc
Supply Ability:	15,000 sets per month
Delivery Time:	7-15 working days
Packaging Details:	carton + foam + wooden case

1. Specifications

(1) Technical Parameters

Model No.		TC06-100ZEH/01
Environmental Performance	working environmental temperature	-20°C ~ 55°C
	storage working temperature	-40°C ~ 70°C
	working humidity	≤95%
Thermal Performance	rated cooling capacity	1100W(L35 L35) 1000W(L25 L35)
	rated heating capacity	300W/500W(optional)
Electrical Performance	rated input current	6.8A(L35 L35) 6.5A(L25 L35)
	rated input power	326W(L35 L35) 312W(L25 L35)
	input voltage	DC48V
Reliability	MTBF	60000 hours
Noise	≤65dB
Refrigerant	R134a

Dimension Diagram: H×W×D: 695×424×221mm

2. Introduction

The TC06-100ZEH/01 air conditioner is a full automation temperature control product. It uses intelligent controller to control the whole system of the air conditioner. According to the variation of environment temperature, the intelligent controller can automatically detect, operate and record the whole system’s operating time, power consumption, event and historical data. It can store 100 event records and 1280 historical data records, and can enquire 256 days’ daily record information. The product is widely applied in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, etc.

3. Features Strong adaptability High intelligence High precision High reliability Low noise Low energy consumption With 4 way switching value detection With 1 way room air conditioner control Wide input voltage range: 48VDC±15% With dry contact alarm output   4. System Principle Diagram

System Principle Diagram

5. Electrical Wiring Diagram

Wiring Diagram

Wiring Ports:

0V -48V: power supply input (voltage input: 48VDC±15%)

F+ F- : direct ventilation output

AL1 AL2: general alarm output

A+ B- SGND: RS485 communication interface

N: not connected pin

6. System Control 6.1 Application

ET872 controller is a type of universal intelligent controller. It is controlled by highly integrated STC single chip microcomputer. It can intelligently control operating and hydrogen exhaust of thermostatic cabinet air conditioner, and can control a telecom room air conditioner. It have the following functions: fault self diagnosis, power on self start, restart after unexpected failures caused by other reasons.

The controller features perfect performance, easy and fast installation and setting, which is widely used in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, bank ATM machine note change room etc. <
