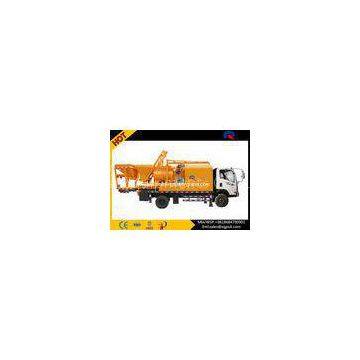

Truck Mounted Concrete Pump , Concrete Truck Mixers 28m Max Mixing Output
- 0 Meter / Meters per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
48m Jib Length Overhead Hammerhead Tower Crane With 4 Tons Topkit
-
Customized Topkit Tower Crane , Construction Crane Machine Jib Boom Length 60m
-
qtz5010 Hammerhead Tower Crane 4tons Max. Height 120M Freestanding Height 30M
-
Concrete pump and drum mixer Max. Theoretical Pumping Output S Pipe Valve1111
-
Concrete Mixer Pump Truck Discharge Height 1.2M Double Cylinder Hydraulic Pumping
-
Air Cooling Diesel Trailer Mounted Concrete Pump 300m Transmission Distance
Product Details
Brand Name | Pully | Place of Origin | China | |
Model Number | JBC40-L2 |
Product Description
Certification:ISO/CE/BV/ROHS
Pully new concrete cement mixer truck hydraulic with pump/ 25m3/h truck mixing machine, batch pump in Indonesia
Production Specifications
Pumping System | ||
Pump Model | / | 40.7.37S |
Max. Theo. Pumping Output | m3/h | 40 |
System Pressure | Mpa | 28 |
Delivery Cylinder×Stroke | mm | Φ200×1000 |
Distribute Valve | / | S Valve |
Oil Tank | L | 300 |
Aggregate Size | mm | Pebble:40 Crushed Stone:30 |
Generator | kw | 100 |
Main Motor | kw | 37 |
Main Pump Brand | / | Flutek Kawasaki K3V112 |
Outlet Pressure | Mpa | 7 |
Main Oil Cylinder/Rod×Stroke | mm | Φ100/Φ70×1000 |
Diameter of Outlet | mm | Φ200 |
Delivery Pipe | mm | Φ125 |
Slumps | cm | 12-23 |
Generator Brand | Optional | Commins |
Mixing System | ||
Mixer | / | JS500 |
Max. Theo. Mixing Output | m3/h | 28 |
Incharge Hopper×Filling Height | L×mm | 800×1200 |
Discharge Hopper Capacity | L | 500 |
Flexible | / | Yes |
Mix Motor | kw | 18.5 |
Hoist Motor | kw | 5.5 |
Water Pump | kw | 0.75 |
Vibrator | kw | 0.75×2 |
Batching System | ||
Hopper Capacity | m3 | 1.8 |
Hydraulic Outrigger | pcs | 2 |
Compressor | bar | 3 |
Flexible | / | Yes |
Frame | ||
L×W | mm | 4000×2200 |
Hydraulic Outrigger | pcs | 4 |
Chassis | ||
Brand | / | CDM |
Chassis Model | / | CDM5070THB |
Gear-box | / | 145F |
Driving Speed | Km/h | ≤80 |
Wheel Base | mm | 3360 |
Mass | kg | 12688 |
Engine/Model | / | yunnei/4102 |
Tyre | pcs | 6 |
Tyre Size | / | 8.25R16 |
Size(W/O Batcher) | mm | 7300×2210×2580 |
Size(Driving with Batcher) | mm | 8400×2210×2580 |
Size(Working with Batcher) | mm | 10200×2210×2580 |
Production Description
This machine combine JS500 concrete mixer, HBT40 concrete pump, batch ing system, diesel generator, truck, Five machines combine into one.This machine can batching the sand and stone, discharge the settle capacity every time, mixing sand, stone and cement become concrete , then pumping to the job site by delivery pipe.The max pumping distance in vertial can reach 70 meters and the max pumping distance in horizontal can reach 300 meters.Production Feature
1. Excellent mixing performance
2. Simple operation
3. Accurate and reliable dosage
4. Outstanding environment protection
5. Quick transfer
6. High reliability
Competitive Advantage
1. Less Transportation Cost (The main unit can be transported by 1 unit truck trailer)
2. Less Installation Area Requirement With Its Special Design
3. Quick Installation and Start Up Period (1-2 days)
4. Less Foundation Cost
5. High Quality and Precise Concrete Production (with Fully Automated Computerized Control System)
6. Reliable Components (Siemens, Schneider, WAM, etc.)
7. Easy Maintenance and Low Operating Cost
Sale services
1.May enjoy the life-long service after you buy our products.
2.Training the operator for free.
3. Under the condition that foundation, water source, power source, aggregate, hosting equipment, auxiliary staff is ready. Engineers are available if you need.
4.Certain quantity stochastic tool will be provided while delivering goods.
5.Within 48 hours service will be available according to different regions after received the telephone.
6. For exported products, Our company sends the constructor to help to operate and management equipment, time according to your needs. The related fee will be undertaken by buyers.
7. Promptly provides the fittings
