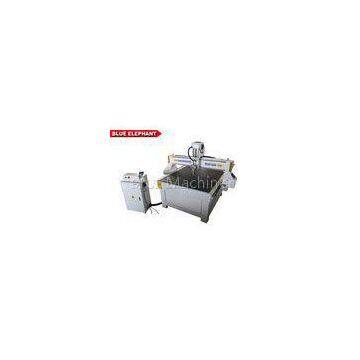

Leadshine MA860H driver or YAKO 2608 driver Cnc router copper engraving machine ELE - 1325 with high quality
Standard Configuration of cnc Router
3KW water cooling spindle 3.7KW Fuling inverter DSP Control System with USB interface( offline operation) Leadshine MA860H driver or YAKO 2608 driver Vacuum & T-slot working table Taiwan HIWIN/PMI Linear Guide Helical rack & gear transmission for XY axis , Taiwan TBI Ball screw for Z axis Type3 Software(Option: Artcam Software)Additional Option parts of cnc Router
Vacuum pump Dust collect system Automatic lubrication Mist sprayer and flumeTechnical Parameters of cnc Router
| Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300x2500x200mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 5 | Table Surface | Vacuum&T-slot Table |
| 6 | Frame | Steel Gantry & steel tube frame |
| 7 | X, Y Structure |
Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings |
| 8 | Z Structure |
Taiwan TBI Ballscrew Taiwan Hiwin/PMI Rail Linear Bearings |
| 9 | Max. Power Consumption | 3.2kw (without spindle) |
| 10 | Max. Rapid Travel Rate | 33000mm/min |
| 11 | Max. Working Speed | 25000mm/min |
| 12 | Spindle Power | 3KW water cooling spindle(optional) |
| 13 | Spindle Speed | 0-24000RPM |
| 14 | Drive Motors | YAKO or Leadshine |
| 15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| 16 | Command Language | G Code |
| 17 | Operating System | DSP system (Options: Ncstudio /Mach3 PC Software) |
| 18 | Computer Interface | USB |
| 19 | DSP Memory | 512M |
| 20 | Collet | ER25 |
| 21 | X,Y Resolution | <0.01mm |
| 22 | Software Compatibility | Type3 Software, (Option: Artcam Software) |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity |
30% - 75% |
Application and samples by cnc Router
1 . WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2 . Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3 . Die Industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4 . Relief Sculpture and 3D Engraving
5 . Cylindrical object
Warranty
18 months for the whole machine and 6 months for spindle.
After-sale service for cnc Router
1 . Within 7 days since your local customs clearance: if the CNC machine's any parts has any problems, we will change it FREE.
2 . Exceed 7 days since your local customs clearance but withinwarranty period: if the CNC machine parts have any problems, we can change the old machine parts to new ones FREE, but you should pay all the shipping cost.
3 . Exceed warranty period: if the CNC machine parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4 . We offer 24 hours technical support by call, e-mail.
5 . Our technician can give you remote guide online (Skype or MSN) if you have any question.
6 . We can record VIDEOS of operating the laser machine.
7 . FREE training course in our factory.
8 . Machine will be adjusted before it is delivered; operation disk/CD was included.
