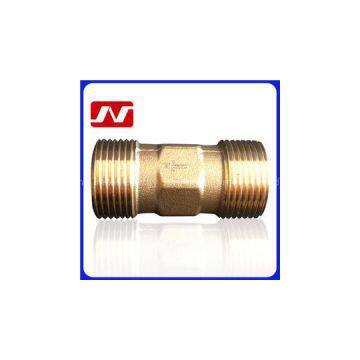

Help Center3/4inch Brass 2 Ways Frost Valve
Negotiable
MOQ: 1 Box (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Place of Origin:
China
Model Number:
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
3/4inch Brass Thermostatic Mixing ValveNegotiableMOQ: 1 -
3/4inch Brass 3 Ways Diverting ValveNegotiableMOQ: 1 Piece
-
1inch Brass Female Thread Thermostatic Mixing ValveNegotiableMOQ: 1 Set
-
Male Thread Thermostatic Mixing ValveNegotiableMOQ: 1 Bag
-
1-1/4inch Brass Male Thread Thermostatic Mixing ValveNegotiableMOQ: 1
Place of Origin
China
3/4inch brass 2 ways frost valveBody material: BrassMax. working pressure: 10 barAmbient temperature range: -30–90°COpening temperature: 4°CClosing temperature: 8°CAccuracy: ±2°CConnections: G3/4" or NPT3/4" , one inlet – male thread , one outlet – male threadNet weight: 0.14 KGSGross weight: 0.15 KGS When the water temperature below 8℃. This causes the sensor to move and open a tiny passage so that water can drain out, this prevents water from freezing inside the pipe. When the temperature below 4 ℃,the valve opened completely. The water will be flow out from the solar panel . When the temperature above 8℃, the valve will be closed. Before installing the device, make sure that the system has been flushed and cleaned to remove any traces of dirt that may have accumulated during installation. The frost valve outlet port must vertical to ground, so as to permit a free and unrestricted downward flow of the water as it drains out. The device must be installed in the points of the circuit at risk of freezing so that the water may flow freely and in order to prevent pipes, storages or components located upstream of the device from freezing. Pipes downstream of the device must be protected from frost if, due to the intervention of the device, the water contained in them remains stagnant without flowing. In the case of exposed outdoor pipes, the installation of a suitable heating cable will provide effective protection. 1. small carton (mm) : 150*87*52 , 7 pieces antifreeze valve in one small carton .2. big carton (mm) : 470*325*190 , 210 pieces antifreeze valve in big carton .3. Country of origin : Shenyang of China4. MOQ : 200 pieces5. Warranty : free warranty in 3 years .6. Port of shipment : the nearest sea port is DALIAN , the nearest air port is SHENYANG .
