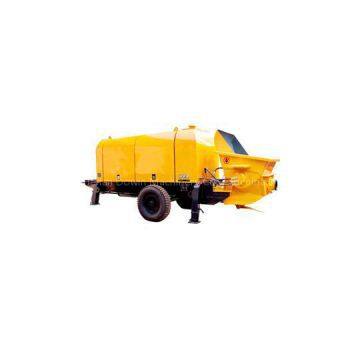

HBT Series Electromotor Concrete Pumps

Introduction of HBT Series Electromotor Concrete Pumps On the basis of mature electric commutation technology,Website: , we have develop overall hydraulic concrete pumps with excellent performance. This hydraulic system greatly improves the reliability of the machine and makes sure it can work in any hard condition. Our various motor concrete pumps (diesel engine concrete pump) mainly cover capacity from 30 to 120m3/h and pressure from 5 to 20Mpa.Technical data of HBT Series Electromotor Concrete PumpsItemS valve pumpHBT60S-13HBT60S-16HBT80S-13HBT80S-16Theoretical concrete delivery volumeLow pressure(m3/h)60608080High pressure(m3/h)36354746Theoretical concrete delivery pressureLow pressure(Mpa)7.69.67.69.6High pressure(Mpa)12.515.712.515.7Hydraulic pressure(Mpa)32323232Electric motor speed(r/min)1480148014801480Main oil pumpOriginal German Hawe, Rexroth and Japanese KawasakiMain cylinder dia./pole dia*stroke(mm)125/80*1650140/90*1650125/80*1650(1800)140/90*1650(1800)Diameter of delivery cylinder(mm)200200200200Electric motor power(kw)90110110132Capacity of hydraulic oil tank(L)500500500500Hopper capacity(m3)0.60.60.60.6Overall weight(kg)5000520052005500Maximum pumping distanceVertical(m)180250180250Horizontal(m)70010007001000
