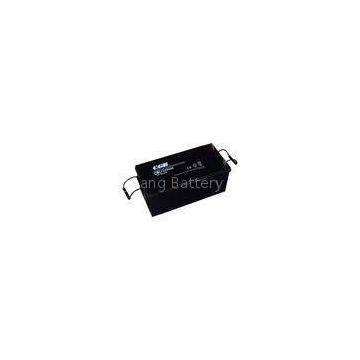

High Efficiency 12V Rechargeable Battery For Alarm System Long Life

High Efficiency 12V Rechargeable Battery For Alarm System Long Life

Specifications:

Description:

● Designed life for floating charge is 10 years (20℃);

● Special formula of grid alloys and lead paste, special manufacturing technique, to make sure the high quality, high performance and long life;

● AGM valve regulated sealing technology;

● High strength ABS material for container & lid;

● Wide temperature scope of application (-15~45℃);

● Best temperature of application (20±5℃);

● Long life, low self-discharge rate and high reliability;

● Standing or lying down for using, convenient to transport and install;

● High sealed reaction efficiency, little loss of water, no need to add distilled water or electrolyte, simple to use and maintain;

● Cycle or standby(or float) use

Applications:

● UPS & EPS System

● Telecommunication

● Banks & Financial Centre

● Emergency & Alarm System

● Telecommunication

TECHNICAL FEATURES:

• Sealed Construction

The unique construction and sealing techniques ensure no electrolyte leakage from case or terminals.

• Electrolyte Suspension System

All batteries utilize an electrolyte suspension system consisting of a high porosity, glass fiber material which in conjunction with plates, totally absorb and contain the electrolyte.

• Gas Recombination

With special formula to manufacture lead calcium alloy aswell as automatic progresses, dangerous gas will not be generated.

• Maintenance Free Operation

When it is used in safe surroundings, the battery is maintenance free, adding water is unnecessary and it can be recharged repeatedly.

• Low Pressure Valve Regulated System..

All batteries are equipped with safety release valves, designed to operate between 1.5 and 6 psi (10-40kPa) and automatically reseal. Hence, there is never an excessive accumulation of gas within the battery.

• Heavy Duty Grids

Heavy duty lead calcium tin alloy grids provide an extra margin of performance and service life in either float or cyclic applications.

• Cyclic Service Life

More than 600 discharge/recharge cycles can be realized from CGB CB and HR batteries, dependent on the average depth of discharge.

• Float Service Life

SE and CB, HR Series batteries have an expected life span of 3 to 5 years in float service applications.

• Self Discharge - Shelf Life

The self discharge rate at room temperature is approximately 3% of rated capacity per month.

• Operating Temperature

CGB Batteries may be operated over a broad range of ambient temperatures.

• Terminals

The batteries are manufactured using a range of terminals which vary in size and type. Please refer to details as shown

Precautions

● Fire hazard

During battery installation, make sure to fix the connecting terminals of the conducting wire tight, and keep the output terminals of the batteries clean. Otherwise, it may lead to a high temperature of battery terminals and even to spark/fire.

● Acid-corrosion danger

No great impact shack and dump-age of the battery when handling and operating. Otherwise, it may cause the leakage of the acid.

on mixing the acid, please wear the protections: face-guard, acid-proof shoes, acid-proof glove, acid-proof clothes & eye-protector.

never have the acid spill on skin, eyes without any protections & also no acid on equipment or floor.

● Operation regulation

Before battery operation, read the safety precaution/instruction, and the operation instructions, especially the battery interconnection instructions.

substandard operation will cause danger. Prevent battery short circuit and prevent battery electrolyte from flowing out. Overflowed electrolyte is a latent danger and it will erode the metal object and circuit board, thus damaging the equipment and causing short circuit of the circuit board.

● The Operation Environment

The battery should be kept far away from fire, organic solution;
