Home > Products > Samsung LCD Panel > Original 3.5 Inch Samsung LCD Panel LTV350QV-F04 For Industrial / Commercial
Original 3.5 Inch Samsung LCD Panel LTV350QV-F04 For Industrial / Commercial
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
New Original High Brightness LCD Panel No Holes / Brackets For Digital Camera
-
Hard TFT Color LCD Display For Samsung , Full Colour Industrial LCD Panel LTP500GV-F01 / 60H00049-00
-
4.8 Inch Innolux LCD Panel LB048WV1-TL01 , Embeded Lcd Touch Panel 3 Years Warranty
-
Wide Temperature 7.0 Inch LG LCD Panel Long Backlight Life LB070WV1-TD07
-
LED Backlighting LG LCD Panel 7.0 Inch For E - Ink Reader LB070WV6-TD06 / LB070WV6-TD08
-
Industrial / Commercial 9.7 Inch LG LCD Panel LP097QX2-SPAV For PDA Application
Product Details
| Brand Name | Samsung | Place of Origin | China | |
| Model Number | LTV350QV-F04 |
Product Description
Certification:ISO9001
3.5 Inch TFT LCD Screen Samsung LTV350QV-F04 For Industrial & Commercial UseÂ
Description for Samsung LTV350QV-F04 TFT LCD Screen:ÂQuick Details:
1. Model: LTV350QV-F04
2. Size: 3.5 inch
3. View angle: R/L/U/D 60/60/50/55(Typ.)
4. 300:1 contrast ratio
5. Brightness 350nit
6. 320(RGB) x 240 resolution
7. Dimensions: 76.9Â x 63.9Â x 3.35Â (mm)
8. Panel uses: Industrial Use
9. Parrallel RGB( 1ch, 8-bit) + SPI, 54 pins  Signal Interface
10. Backlight CCFL
11. Input voltage:Â 3.3 / 4.9 / 18.0 / -10.0V ( Typ.)Â
Specifications Samsung LTV350QV-F04 TFT LCD Screen:
| Module number | LTV350QV-F04 |
| Resolution | 320(RGB) x 240 |
| Pixel Pitch | 0.073x 0.219 (mm) |
| Active Area | 70.08 x 52.56 (mm) |
| View angle | R/L/U/D 60/60/50/55 (Typ.) |
| Mode | TN |
| LCD Surface | Anti-glare,3H |
| Number of Colors | 16.7M |
| Electrical Interface | RGB/CCIR656/601 |
| Brightness | 350 cd/m2 |
| Contrast ratio | 300:1 |
| Outline dimension | 76.9 x 63.9 (mm) |
| Gross weight | 32/37g (Typ. / Max.) |
| Backlight | CCFL |
| Supply Voltage (V) | 3.3V |
| Response time | 25(ms) |
| Operate temperature | -20-60 (°C) |
| Storage temperature | -30-70 (°C) |
| Package | Samsung Original Package |
Notice: Â
I. The LCD display panel is suitable for the Industry & Instrument & Equipment.Â
II. Display & Panel: imported from Japan & Korea and so on. Level A LCD Panel. stable quality & better performance.Â
III. Main Board & Controller: the imported chip, strong technology support, special design, guarantee the quality & performance are beyond those from many competitors in this industry.Â

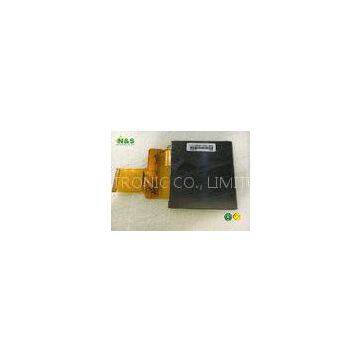

Detail Pictures for Samsung LTV350QV-F04 TFT LCD Screen: Â
Samsung LCD Display, Samsung LCD Screen Panels.Â
