Product Introduction

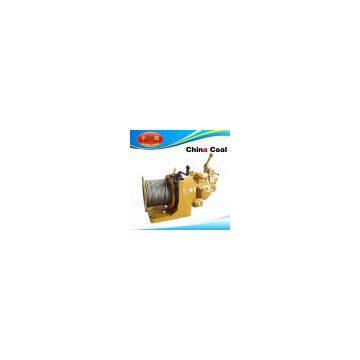

Air Winch 3ton&5ton
Adopting pneumatic motor as power,pneumatic winch model HQDH series can tow and lift heavy goods through speed-reducing gearbox to drive roll.It has the advantages of compact structure ,convenient operation,safe and reliable operating,simple maintenance, smoothly running and stepless speed-changing etc. It is used in oil field,well-drilling in oil field ,mine-exploiting and others place with inflammable or easy exploding air.
To ensure that users work safety ,the pneumatic winch adopts brake system. According to the quality of brake,the system is classified into single-brake,double-brake.According to brake type, it is classified into hand-brake, foot-brake,hydraulic-brake and pneumatic-brake. In addition, pneumatic winch also can be classified into high base and low base pneumatic winch.
Main Parameter
Item Specification
Model HQDH-3/35* HQDH-5/35*
Max lifting force 30KN 50KN
Max lifting speed 35m/min 35m/min
Pated power 13.2KW 16KW
Air intake pressure 0.8Mpa 0.8Mpa
Rated air consumption 12.7m3/min 13.7 m3/min
Wire capacity 150m (Single brake)
120m (Double brake) 120m (Single brake)
100m (Double brake)
Diameter of wire 16mm 19mm
Base connecting dimension 912mm*500mm(High base) 912mm*500mm(High base)
912mm*392mm(Low base) 912mm*392mm(Low base)
Net weight 550kg 550kg (500kg)
