High Luminous Efficacy 5050 SMD Led Module For Led Channel Letter Signs CE RoHs
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Epister 5050 LED Module for Led Acrylic Letters High Light Effective 67*19*5.9 mm Size
-
SMD 5050 LED Module With 3M Adhesive Tape Heat Dissipation Aluminum PCB Board
-
Led Modules For Signage Light Box , Backlight 3w Cree Led Sign Lighting Modules
-
Epistar SMD 5050 LED Module , AC110V / 220V High Voltage LED Lighting Modules
-
High Voltage Led Module 220v 1.8W 38 Deg Viewing Angle , 3030 SMD Technology Led
-
IP65 3030 SMD Led Module 220v 160 Wide Angle 120 - 160lm Luminous Flux 48 35 8mm
Product Details
| Brand Name | YESUN | Place of Origin | China | |
| Model Number | YS-M23131 |
Product Description
Certification:CE/ROHS

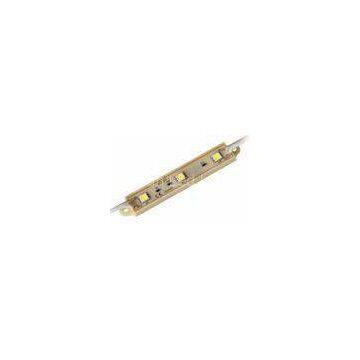

Epoxy module 3 led SMD5050 For Channel letters
Technical Parameters:
| Item No. | LED Color | Color Termperature(K) | Beam Angle (°) | Luminous Flux (lm) | Working Voltage (VDC) | Power (W) | Dimension (mm) |
| YS-M23131-WW | Warm White | 3000-3300 | 120 | 60-66 | 12 | 0.72 | 77.6*5.0x4.5 |
| YS-M23131-PW | Pure White | 6000-6500 | 120 | 60-66 | 12 | 0.72 | 77.6*5.0x4.5 |
| YS-M23131-CW | Cool White | 10000-12000 | 120 | 60-66 | 12 | 0.72 | 77.6*5.0x4.5 |
Others:
| Item No. | LED Color | Standard Qty per string (pcs) | Storage Temp (°) | Working Temp (°) | Material | Max. qty in series (PCS) | Protection Rate |
| YS-M23131 | All | 20 | –25~+60 | –20~+50 | ABS+FR4 | 40 | IP65 |
Specification:
| Model number | YS-M23131 |
| Voltage | DC12V |
| Power | 0.72W |
| Current | 60mA |
| Color | Warm White / Cold white/ Red / Green / Blue |
| Lumen/module | 60-65lm |
| Viewing angle | 120 degree |
| IP degree | 65 |
| Size | 78 × 15 × 4.2mm |
| Package | 20 modules per string, 10 strings per bag,14 bags per outer carton,2800 modules in total |
Profile Drawings:
Applications:
 * Suitable for 8～16cm depth signs such as channel letters, metal letters, light boxes,decoration,etc.
Features:
1. High luminous efficacy 5050 SMD LED mounted.
2. High light effective; No light decay after working 1000Hrs; With 50000Hrs lifespan.
3. Overmolded housing design with 160degree lens, nice and upscale.
4. Certification: CE,RoHs.
5. Aluminum PCB good heat dissipation.Â
6. Constant current circuit ensure stable quality.
7. Emitting color available: red, green, blue, yellow, pure white, warm white, cool white.
8. Waterproof rank: IP 65.
Installation:
1. 3M adhesive tape backing on modules used as an installation aid only, permanent adhesion is done with screws;
2. Single module as a unit can be cut accordingly.
3. The maximum quantity can be connected in one row is 40pcs.
Warranty:
* 3 years warranty, 30,000 hours life span
