Sell Lathe
Negotiable
/ Set
1 Set(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
Place of Origin | China |
Product Description
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:

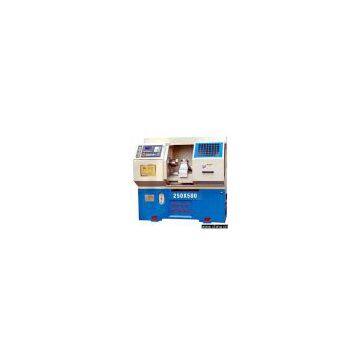

Description:Product Name: LatheModel Number: CK6125Place of Origin: ChinaSpecifications of CK6125: 1) Maximum rotary diameter: 400mm, 15.75" 2) Maxximum diameter work-piece: 240mm, 9.84" 3) Maximum diameter of bar stocks: 48mm, 1.89" 4) Maximum turning diameter of tool turret: 150mm, 5.9" 5) Maximum length of workpiece: 350mm, 13.78" 6) Cut thread/thread cutting metric system: 0.25-12mm 7) English system and system thread: 28"-31/2" 8) From guideway of lathe (bed to centerline of the spindle): 195mm, 7.68" 9) Maximum speed of spindle (stepless): 300-3,000r/min 10) X axis maximum length of travel: 180mm, 7.09" 11) Z axis maximum length of travel: 350mm, 13.78" 12) Feed speed in axis X (stepless): 5-1,000mm/min 13) Feed speed in axis X (stepless): 10-2,000mm/min 14) Fast motion speed in axis X: 3,000mm/min 15) Fast motion speed in axis Z: 6,000mm/min 16) Sectional area of tool bar/sectional area of cutter bar: 25 x 25mm 17) Distance between centerline of spindle and supporting surface of tool: 25mm 18) Taper of the tailstock: no. 4 19) Maximum stroke of the tailstock: 100mm 20) Power of master motor: 4kW 21) Dimensions of lathe tool (L x B x H): 1,600 x 1,160 x 1,650mm 22) Net weight: 1,000kg
Contact Us
- Yuhuan Kanmen Machine Tool Factory
- Contact nameMr. James Hom Chat Now
- Phone86-576-7286438
- AddressJiefangtang Farm, Yuhuan County, Taizhou City, Zhejiang Province. China, Xi'an, Shaanxi
