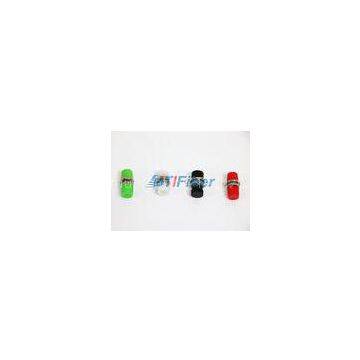

Single D and Double d Type , FC Optical Fiber Adapter with White Dust Cap
Fiber Adaptor is comprised of a polymer/metal outer body and their inner assembly fitted with a precision alignment mechanism.
Fiber Adapters are precisely made and manufactured to demanded specification.
The combination of a ceramic/phosphor bronze alignment sleeves and a precision molded polymer housing provides consistent long-term mechanical and optical performance.
Features:
All standard and hybird types are offered in both multimode and single mode construction
High performance interconnections offer very low insertion loss.
Ceramic (Zirconia)or low -cost Phosphor Bronze alignment sleeves
Customer designed specification
Compact packing
Parameter:
Compliant with Bellcore GR-326
Compliant with Respective IEC standard
Compliant with ROSH
Insertion Loss:<0.2dB
Durability :0.2dB Max Increase
Withdrawal Force(g/f):100-300
Operating Temperature:-40 to +80degree Celsius
Application:
High speed transmission systems
Fiber optic sensing
Industtial, Mechanical and Military
Fiber Optic Telecommunications
LAN (Local Area Network)
FTTH (Fiber To The Home)
CATV&CCTV System
Specification:
|
Item |
Parameter |
|
Material |
ABS, PBT, PC |
|
Color |
Blue,Green,Grey,Aqua,Purple etc. |
|
Scope |
PC&APC |
|
Insertion Loss |
<0.2dB |
|
Operation Time |
500 times without distortion and crack, Variety Insertion Loss<0.1dB |
|
Insertion Loss |
-40 ~ +85°C |
|
Mechanical Durability |
50N, connection with two connectors, connection time of 30min |
|
Temperature |
40N, connection with two connectors, connection time of 30min |
|
Axial Tension Force |
>8 N |
|
Side Shear Force |
-40~+75°C |
Environment and Mechanical:
|
Properties |
Test condition |
Conformance |
Test result |
|
Vibration |
10-55Hz, 1.5mm, 60min |
IEC61300-2-1 |
≤0.2dB |
|
Mating Durability |
1000 Mating, clean every 25 mating. |
IEC61300-2-2 |
≤0.2dB |
|
Impact |
1.5m, 8 drops |
IEC61300-2-6 |
≤0.2dB |
|
Strength of Coupling Mechanism |
40N, 10Min, L=22-28cm |
IEC61300-2-12 |
≤0.2dB |
|
Temperature Cycling |
40ºC to +75ºC, 40 cycles |
IEC61300-2-22 |
≤0.2dB |
|
Temperature humidty cycling |
40ºC, 95%, 96Hr |
IEC61300-2-21 |
≤0.2dB |
|
Operating Temperature |
-40ºC to +85ºC |
≤0.2dB |
|
|
Storage Temperature |
-40ºC to +85ºC |
≤0.2dB |
Order Information:
FC/APC-FC/APC-SM-SX-Metal
1. Connector Type: FC, SC, LC, ST, MPO, MTRJ, MU, E2000, D4, DIN, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type : SM, MM(OM1 OM2 OM3 OM4)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy
7. Material: ABS, PC, PBT, metal
