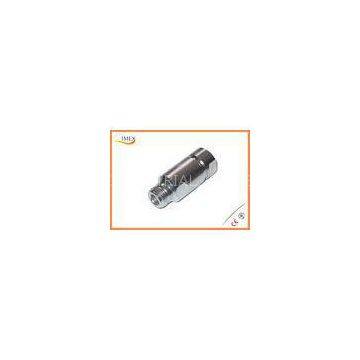

500 Cycles min. RF Type N Female Connector With Synthetic Rubber Clamp Gaskets

Delivery Time:15 days
Certification:ISO9001, IEC ,UL , CE , RoHS, TLC

500 Cycles min. RF Type N Female Connector With Synthetic Rubber Clamp Gaskets

Product Description

The peak power rating of an N connector is determined by voltage breakdown/ionization of the air near the center pin. The average power rating is determined by overheating of the center contact due to resistive insertion loss, and thus is a function of frequency. Typical makers' curves for a new clean connector with a perfect load (VSWR=1.0) give limits of ≈5000 W at 20 MHz and ≈500 W at 2 GHz. This square root frequency derating law is expected from the skin depth decreasing with frequency. At lower frequencies the same maker recommends an upper bound of ≈1000 V RMS. To achieve reliable operation in practice over an extended period, a safety factor of 5 or more is not uncommon, particularly when generic parts may be substituted, or the operating environment is likely to lead to eventual tarnishing of the contacts.

Specifications

Connector Parts: Materials: Plating Finish

Body: Brass: Nickel or Silver or Sn/Zn/Cu

Female Pin: Beryllium Bronze or Phosphor Bronze: Gold or Sliver

Insulators: PTFE: N/A

Clamp Gaskets: Silicone Rubber or Synthetic Rubber: N/A

Durability Mating: 500 Cycles min.

Electric Data
Characteristic Impedance	50ohm
Frequency Range	0-11GHz
Working Voltage	1000 VRMS(max at sea level)
Dielectric Withstanding Voltage	1500 VRMS(min at sea level)
VSWR	Straight: ≤1.30
Contact Resistance	Inner: 1.5 milliohms(max) Outer: 0.2 milliohms(max)
Insulation Resistance	5000 megohms(min)

Environmental Data
Temperature Range	-65～+165℃

Shipping

1. Worldwide air transportation via FedEx, DHL, TNT, Ups, Ems. Sea-shipping is via our profession forward.

2. Orders processed timely after the payment verification.

3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.

4. The images shown are not the actual item and the actual product follows the order confirmation.

5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is client’s satisfaction!

7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery
