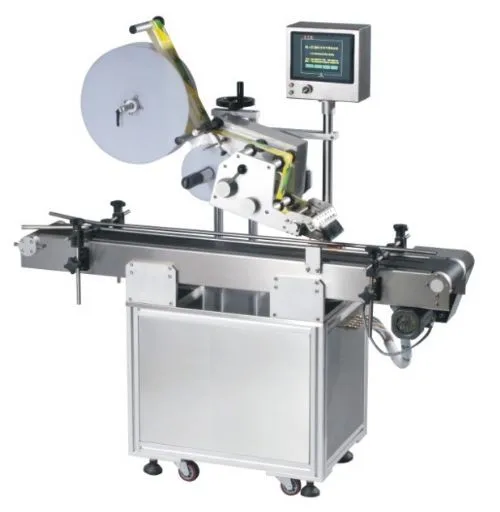

Help CenterTS-TB Series Labeling Machine
Related Products
Automatic labeling machine is a paper label or foil label roll can become attached to the PCB, product or packaging prescribed equipment. Comes back label adhesive and regularly arranged on the bottom surface of the paper, Feeder or stripping labeling machine on the scale mechanism can be automatically stripped. Automatic labeling machine on the assembly line, a part of the inflow of PCB or product positioning, and use a visual way to confirm its coordinates, after automatic labeling machine at the tip of the Feeder reclaimers, on the bottom of your camera coordinate label confirmed according to the algorithm inside the machine, and the need to label affixing position coordinates of the location, and then paste the cover on the product has reached a higher precision is pasted, automatic labeling machine can complete PCB surface paste, paste the original surface of the PCB other flat paste, paste on one side or surface of the packaging, cylindrical paste, full coverage or partial coverage cylinder paste, paste and other parts of the recessed corners and a variety of operations, now commonly used for SMT industry also began to replace the manual.
Feature:
Leaflets labeling for a wide range to achieve square bottle / flat bottles (full bottle status) side / plane / corner ask standard round bottle and circumferential positioning single / double sheet is pasted.
Unique dosing mechanism to ensure reliable production line and online use and effective dosing.
Unique corner ask standard bodies to ensure three-sided corner labeling square bottles flat, do not wrinkle,
Both stand-alone use, and can be used in conjunction with the production line.
Applicable to bore 30-300mm, tank height: round or square cans bottles, etc. Paper 40-600mm full circumference labeling, can also be unhappy or dissatisfied with the entire circumference of the body labeling, widely used in food and beverage , chemical pesticides, paint, pharmaceutical and healthcare industries Mosquitocide insecticide, air freshener, automatic paints, swollen glue, gas, leather polish and so on the packaging of goods.
product structure:
Conveyor belt: conveyor belt for labeling products and already label products, driven by the 60W PVC, belt conveyor;
Labeling host: for driving the entire volume label and independent labels peeled out, supply products. By a stepping motor, sub-standard polyurethane wheels, a standard disk, beacon shaft, brake mechanism, measuring scale mechanism, stripping standard plate, the synchronous receive standard mechanism, and front and rear lifting mechanism regulating agencies.
Labeling position adjustment: labeling control different heights for product labeling and product around the location, handwheel drive around labeling Board moved up and down to control the standard board position, to regulate the labeling of the front and rear positions and roles.
Power control: for the main power switch and power control and indication.
Man-machine interface: used to control the auto-run program, on the man-machine interface can be individually controlled part of the action and on the man-machine interface can be set up, store, read a variety of operating parameters labeling
Brush mark means: when the product labeling for the brush to brush flat on the label surface of the product.
Main Electromechanical box: installation of equipment for the main electrical control components, such as stepper motor drive, power supply, transport motor drive, programmable controller (PLC), etc.
