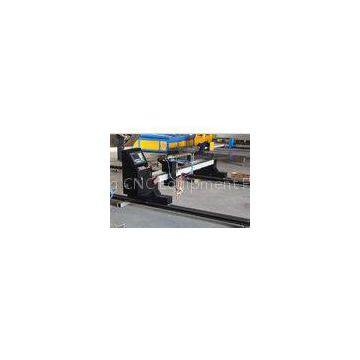

Beam Bridge CNC Oxygen Cutting Machine ISO Approved CNC Plasma Metal Cutter

FOB Price

USD $6050 / - $6050 / / Set

1 Set(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Yahong		Place of Origin	China
Model Number	YH2060

Product Description

Delivery Time:3 days after received your payment
Certification:CE / ISO

Beam Bridge CNC Oxygen Cutting Machine ISO Approved CNC Plasma Metal Cutter

Metallurgical Industry Beam Bridge CNC Oxygen Cutting Machine ISO Approved

Description:

1. This type of machine is a good solution of a blank parts between mini-size CNC cutting machine and Gantry type CNC cutting machine.

2. It can solve the moving problem of Gantry type CNC cutting machines, provide a larger effciency cutting range compare with Mini-size CNC cutting machine.

3. The machine uses the imported precision dual axis linear guide rails and applies double-driving as the method of driving to increase speed and stability of movement.

4. It is also can be installed any plasma ayatem according on customers' needs.

5. It can cut any shape based on the program within the opreational system.

Applications:

CNC plasma cutting machine is now widely used in industries such as machine tool manufacturing, Petro - chemical equipment, light-industrial machinery, shipbuilding, pressure vessel, mining machinery, electric power, bridge construction, aerospace, steel structure etc.

Technical Parameters for Light Gantry CNC Cutting Machine

1	Cutting shape	Steel plate with any plane shapes fromed by straight lines and arcs
2	LCD Display Dimension	7.0 Inches
3	Effective Cutting Size	2000*6000mm
4	Railway Size	2500*7000mm
5	Plasma Cutting Thickness	0.5--20mm ( Depends on plasma power source capacity)
6	Flame Cutting Thickness	5--200mm
7	Lifting body	1 lifting body standard
8	Cutting Speed	0-8000mm per minute
9	Height Control	Electric Height Control + Arc Voltage Height Control (THC)
10	Drive Mode	Bilateral drive
11	Cutting Mode	flame and plasma
12	Ignition device	Auto ignition device
13	File transmission	USB transmission
14	Gas Pressure	Max. 0.1Mpa
15	Oxygen Pressure	Max.0.7Mpa
16	Cutting Gas	Flame: Oxygen + Acetylene / Propane / Coal gas Plasma :air
17	Software	FastCAM Standard (support Auto CAD / Solidworks / CAXA / Types etc.)
18	Cutting accuracy	±0.5mm
19	Power Supply Voltage/Frequency	220V 50HZ / 60HZ
20	Rated Power Supply	1500W
21	Working Temperature	-10℃-60℃, Relative Humidity, 0-95%.

Packaging:
