ABS , PC , PVC Hot Runner Injection Mould Office Printer
Quick Detail:
1. The part name: Printer accessories (plastic injection mold)
2. Plastic material: ABS+PC
3. Cavity material: H13 HRC48-52
4. Mold life: 1000k shots or according to customers quantity condition to decide it with saving cost for our customers.
5. Gate type: Point gate, Sub-gate, direct gate, fan gate, edge gate, valve gate, tip gate etc according to our customers requires.
6. Mold base standard: LKM Local standard, DME or HASCO,Customize according to customers\' requirements
7. Standard of mold accessories: LKM, DME, HASCO, MISUMI, Meusburger, CUMSA, Progressive, INCORE, HRS, Husky, YUDO, PETS, MOLD-MASTER, MERKLE, Parker, HPS, LKM, EUCHNER, RJG, cilpres, NITTO, CRACK, ASSAB, GSW DIN standard, BOHLER, AISI standard, DAIDO JIS standard, PUNCH etc according to our customers requires.
Description:

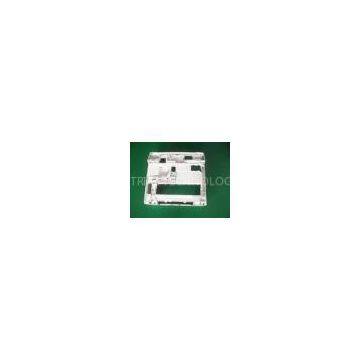

The part name: Printer accessories
Mold type: Plastic Injection Mould with hot runner system
Part Material: ABS+PC
Locating ring Dimension: Ф100
KO Pattern: 200*200
Sprue Radius: SR 19
Ejection type: ejection pins, ejection sleeves.
Mold construction description: hot runner system with sub gate, 2 plates, and many sliders, inserts, lifters and shut off area.
This product is made of ABS+PC plastic material and it is one of the components of the reputable brand Printer. The mold construction is complicated and there are many inserts, sliders, lifters and ejection pins, so it has a very high technical requirement for the mould design. The mould is a hot runner mould with the best water cooling system and the part can be molded by automatically.
This part has very high size requirements, the defect showed below will not be acceptable, for example, weld line, Dark Sport,Sliver Marks,Gas Trap Effect,Visible Ejector Marks,Deformation,Short shot Filling,Burnt Streaks,Sink Marks,Flash,Over dimension,Under dimension,Stress Crack etc. Moreover, the product finishing surface must meet the requires of MT11010.
This mould is made in Shiny Mould Factory. It is a mould exported to Europe, with complicated structures and high quality requests. Customer needs mold life to be over 1 million shots. We can ensure this mold life and give warrant to our customer that once some mould components are broken during working, if it is caused not by the operation fault from the workers, we can provide new mould components to them free of charge.
Because using Hot Runner system, the mold will have the key advantages showed below:
1.Clamping Pressure can be lower
2.Cooling time is faster
3. Cycle time is faster
4. Energy consumption lowered
5. Injection gates are on better locations
6. Injection Pressure can be lower
7. Injection process is cleaner
8. Labor costs for removing the part from the mold and separating runner scrap from the part are eliminated
9. Output increased
10. Overall profitability increased
11. Possibility of contamination is lessened with no runners
12. Possibility of producing the parts using smaller injection machines
13. Problems on nozzle freeze or sprue sticking are eliminated
14. Production costs are reduced
15. Production steps are shortened
16. Quality of the plastic part is better
17. Regrinding is eliminated
18. Resin costs are lowered
19. Runner scrap eliminated or reduced
20. Runner weight reduces shot size
Specifications:
|
|
Printer accessories (plastic injection mold) |
|
Plastic material |
ABS+PC,GPPS,PP,PE,PA,PC,PC+ABS,POM,PVC,PMMA,PS,PPO,ASA,TPU, TPR,EVA,PP+GF,PC+GF,POM+GF,PA+GF,PPT,PET,PETG,SEBS etc. |
|
3.mould base material |
S50C,P20,S136 etc |
|
4.cavity material |
H13 HRC48-52,S136,420, P20, D2, 1040, 0-1, S-7, A2, 1.2344, 1.2083, 1.2311, 1.2739, 1.2343, 1.2510, 1.2767,NAK80,SKD61,718,738,DF-2 etc |
|
5.mold life |
1000k shots or according to customers quantity condition to decide it with saving cost for our customers. |
|
6.cavity number |
1 |
