Certification:CE,ROHS

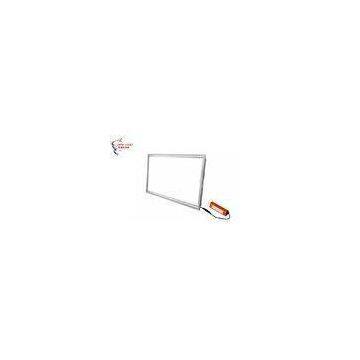

300mm x 600mm 20 Watt LED Light Panel Super Slim Design Lead Free For Meeting Room
Quick Detail:
1. Dimension: 300mm x 600mm x 12mm
2. Led quantity: 160
3. Input Voltage:220v
4. Installation method: Embedded. Hanging
5. Flux:1700Lm
6. Color: W/NW/WW
Description:
1. Super bright 3014 LED as lighting sources.
2. Super slim design, can be fit for integration celling.
3. Input voltage 220v(can be 110v as well).
4. Instant start, no flickering, no humming.
5. Aluminum frame with good heat conduction.
6. Stable power supplier design, long lifespan.
7. Easy install.
PARAMETER
|
· Item NO.: |
SL3060 W/NW/WW |
|
· Dimension: |
300mm x 600mm x 12mm |
|
· LED type: |
SMD 3014 |
|
· LED Q\'ty: |
160pcs |
|
· Material: |
Aluminum + PMMA |
|
· Beam Way: |
Beam at two sides |
|
· Working temperature: |
-10.C~40.C |
|
· Installation method: |
Embedded. Hanging |
|
· IP rate |
IP40 |
|
· N.W.(±0.1Kg) |
1.5Kg |
PHOTOELECTRICITY PARAMETER
|
· CCT : |
2900-6500K |
|
· Flux.(±10%): |
1700lm |
|
· Light Efficiency(±10%): |
85lm / Watt |
|
· Input voltage: |
AC 220V |
|
· Input Power: |
20W |
|
· CRI: |
Ra>80 |
|
· Dimmable: |
Non Dimmable |
|
· Lighting Angle: |
180° |
DIMENSIONAL DRAWING
PRODUCT DETAILS FOR 300X600X12MM LED PANEL LIGHT
APPLICATION
◎ Commercial lighting, environmentally friendly lighting, warehouse , supermarket and home illumination.
◎ IT, call centers, shopping malls and Exhibition Hall, art gallery, the hospital hotel and other public places.
◎ Exhibition Hall, art galleries, museums, offices, reading-room, corridor, staircase lighting,such as contour
range
installation instrustions
Why choose us?
every panel light will pass 24 tests (including led chip light output test, voltage test, power supplier test, the frame flatness test, light guide plate test,and so on) before we delivery. we use top range material for led panel light, for example, laser light guide palte from japan, led chip from taiwan, the frame use 6030 pure aluminu, and very stable power supplier. fast lead time (we use less than 10 days manufacture 10,000 pcs led panel light from received payment to delivery). fast response wow priceThanks for your inquiry, we will response you in 8 hours.
Led panel light; led square panel; led panel
