Reasonable price corotating parallel twin plastic extruder screw

1. Brief Introduction to Our Twin Screw Extruder

Our Co-rotating Twin Screw Extruder are widely used in the compounding, modification field, like the filling, reinforcement, toughening of plastics, engineer plastics and thermoplastics, and also for the special fibers and adhesive process.

HTE series comprehensive increase the application and ability of products with Original German high torque gear box, lubricating system and torque limiter, Screw elements and key part of extruder, accurately manufactured with CNC technology which guaranteed the process accuracy effectively.

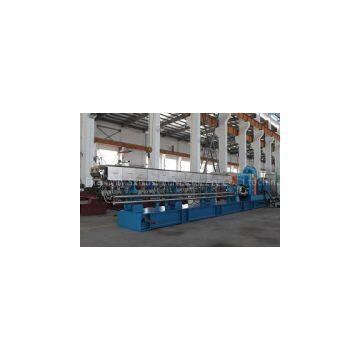

Our Twin Screw Extruder Machine Set consists of the Main Machine Host, the Auxiliary devices and the Electric Control Cabinet.

2. Application of Our Twin Screw Extruder

A: Filler modification:

-CaCO3

-Talc powder

-Barium sulfate

-Ceramic powder

-Wood/plant fiber

-Other inorganic fillers

B: Reinforce modification:

-Short glass fiber

-Long glass fiber

-Carbon fiber

-Other whiskers

C: Masterbatch Processing:

-Carbon black masterbatch

-Color masterbatch

-Flame retardant masterbatch

-Degradable masterbatch

-Other function materbatch

D: compounding modification:

-Thermoplastic/Elastomer

-Polymer alloy

3. Features of our Twin Screw Extruder

a. Of good self-cleaning capability;

b. Highly efficient conveying speed;

c. Uniform Retention period, very suitable for the compounding extrusion of thermosetting powder coating;

d. Easy to feed the raw material: several feeding inlet are set, available to input ribbon material, pasty material, powder material, and glass fiber etc;

e. Excellent exhaust function: the efficient mixture of the contact parts and the self-cleaning function of the degassing part make the exhaust part can get complete update;

f. Excellent mixing and plasticizing effect: the raw material get pressed, sheared, replaced and mixed completely from both the vertical and horizontal sides, thus with good heat transmitting, strong gassing function and good temperature control over the raw material.

4. Advantage of Our Twin Screw Extruder

a. The latest high-torque parallel three-axis gear box, imported from Germany, with excellent performance;

b. The Siemens series PLC and high performance standard vector inverter are adopted as the master station to complete the data acquisition and centralized control of the whole production line;

c.  With high precision safety clutch imported from United Kingdom. When the current host exceeds the set protection current by 15%, the high torque protection device will automatically disengage the main motor and gearbox, and the rear detachment is very simple.

d.  Of segmented structure design, easy to maintain and repair with low cost;

e. Intelligent electric controlling system;
