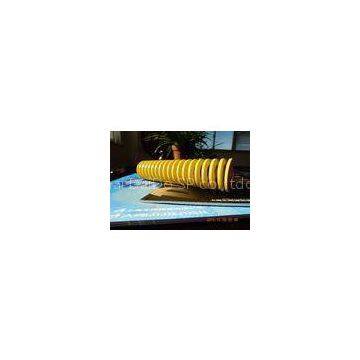

Help CenterHigh Stress SWOSC-V Yellow Light Duty Mold Spring With Rectangular Section
Related Products
-
High Precision Look Beautiful Stiffness Red Mold Spring for TelecommunicationUS$ 4 - 5MOQ: 1 Piece -
Look Beautiful Browm Super Heavy Load Spring Mold Spring Stiffness High PrecisionUS$ 4 - 5MOQ: 1 Piece
-
High Precision Browm Super Heavy Load Spring Mold Spring Stiffness Look BeautifulUS$ 4 - 5MOQ: 1 Piece
-
Browm Look Beautiful Super Heavy Load Spring Mold Spring Stiffness With High PrecisionUS$ 4 - 5MOQ: 1
-
Red Electrical Appliances Good Elasticity Mold Spring With Right-handedUS$ 4 - 5MOQ: 1
Certification:CE,FCC,MSDS
SWOSC-VC Yellow light load spring Mold Spring for Appliances , gift
DAI Spring Detailed Specifications
|
Outside Diameter |
6mm |
|
Free Length |
40mm |
|
Inside Diameter |
3mm |
|
Origin Of Material: |
Japan |
|
Service Life |
1. ,000,000 times |
DAI Spring Tolerance
|
Outside Diameter |
Inside Diameter |
Free Length |
Load |
Squareness Angle |
Direction of Wind |
|
6mm |
3mm |
15 to 40mm |
|||
|
+0mm -0.7mm |
+0.7mm -0.1mm |
±0.5mm |
±10% |
≤2° |
Right Hand Coil |
DAI Spring Detailed Performance
|
Outside Diameter (mm) |
Inside Diameter (mm) |
Free Length (mm) |
Spring Constant |
Solid Length (mm) |
300,000-time Use |
500,000-time Use |
1,000,000-time Use |
Code No. |
||||
|
N/mm |
Kgf/mm |
Deflection (mm) |
Load N(kgf) |
Deflection (mm) |
Load N(kgf) |
Deflection (mm) |
Load N(kgf) |
|||||
|
6 |
3 |
15 |
7.85 |
0.80 |
7.1 |
7.5 |
59.0 (6) |
6.8 |
53.0 (5.4) |
6.0 |
47.0 (4.8) |
YEL 6-15 |
|
20 |
5.88 |
0.60 |
9.5 |
10.0 |
9.0 |
8.0 |
YEL 6-20 |
|||||
|
25 |
4.71 |
0.48 |
11.9 |
12.5 |
11.3 |
10.0 |
YEL 6-25 |
|||||
|
30 |
3.92 |
0.40 |
14.2 |
15.0 |
13.5 |
12.0 |
YEL 6-30 |
|||||
|
35 |
3.33 |
0.34 |
16.6 |
17.5 |
15.8 |
14.0 |
YEL 6-35 |
|||||
|
40 |
2.94 |
0.30 |
19.0 |
20.2 |
18.0 |
16.0 |
YEL 6-40 |
|
Using Time |
300,000-time Use |
500,000-time Use |
1,000,000-time Use |
|
Deflection (Free Length %) |
50.0% |
45.0% |
40.0% |
DAI Spring Features
DAI Spring is especially designed for the stamping mold / plastic mold ; DAI spring can have a powerful motivation in a small space to compare with the round wire coil spring . DAI spring has the type of lightest load spring , light load spring, medium
