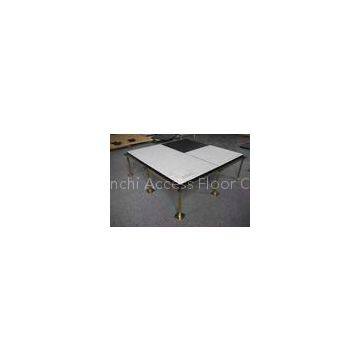

HPL Finished Calcium Sulphate Raised Access FloorWaterproof Strong Wearability

Name: HPL Finished Calcium Sulphate Raised Access FloorWaterproof Strong Wearability
Brand: Tianchi
Price: Negotiable

FOB Price

Negotiable / Meter

1 Meter(Min.Order)

Supply Ability 0 Meter / Meters per Month
Payment Terms:T/T L/C D/P D/A
Delivery Detail:7 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

Tianchi

Place of Origin:

China

Model Number:

TC c1

Product Description

Delivery Time:5 working days after received your payment
Certification:SGS

HPL Finished Calcium Sulphate Raised Access Floor Waterproof Strong Wearability

Material 1	HPL Finish
Material 2	High density Calcium sulphate (Core Material)
Material 3	Aluminim steel sheet/ Gavanized steel
Material 4	Black PVC Edge Trim Fire-proof
Size	60060030mm
Panel dimension	within ±0.25mm
Panel weight:	Approx 18KG
Type	FS1000
Impact Load	680 N
Concentrated loading	453 kg
Ultmate loading	13350 N
Uniform loading	23000 N/SQM
Fire-proof perfprmance	Class A
Rolling loading (10 times)	5560 N

Concentrated Load

Type (TianChi)	Size (MM)	Fire Proof	Concentrated Load			Ultimated Load (N)	Uniform Load(N/m²)	Impact Load(N)	RollingLoad(N)
Type (TianChi)	Size (MM)	Fire Proof	LB	N	KG	Ultimated Load (N)	Uniform Load(N/m²)	Impact Load(N)	10	10000
TC450	60060030	A	≥440	≥1960	≥200	≥5880	≥9720	≥295	1958	1566
TC650	60060035	A	≥662	≥2950	≥301	≥8850	≥12500	≥445	2946	2356
TC800	60060035	A	≥800	≥3550	≥363	≥11250	≥16100	≥536	3560	2670
TC1000	60060035	A	≥1000	≥4450	≥453	≥13350	≥23000	≥670	4450	3560
TC1250	60060035	A	≥1250	≥5560	≥567	≥16680	≥33000	≥780	5560	4450
TC1500	60060035	A	≥1500	≥6660	≥680	≥26690	≥43000	≥780	6670	5560

Pedestal

Flat head pedestal
Steel flat head	95953mm
Steel pipe with screw	Diameter 25mm
Thickness of pipe	1.2mm
Bottom plate	95952mm

Stringer

Stringer
Size	5373020mm
Thickness	1mm
Top	With foam

Features:
1) convenient to install High pressure plywood for an easy-to-clean anti-static material
2) Electrostatic spray processed surface
3) Water /fire/dust and corrosion proof
4) Accurately sized interchangeable flexible
5) Peripheries have straight edge or hem no adhesive tape needed

Why us:
1. Wide range of product
2. Fine Workmanship
3. Lead R&D ability
4. Perfect Packing
Timely Delivery
