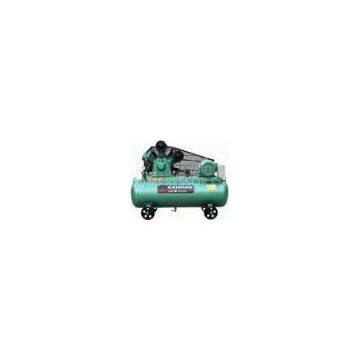

Motor Driven Piston Air Compressor 43CFM Capacity For Tire Inflation
Quick Detail:
Model:KAH-15
Capacity:1.22m3/min 43cfm
Motor power:15hp/11kw
Cylinder liner:¢120*2 ¢100*1
Air tanl: 300L
Weight:500kg
Size:1635*700*1350mm
Description:
1.Ensure low oil consumption
2.Durable service
3.Suitable for 24 hours work
Applications:
This series air compressor widely used in pneumatic lock , pneumatic tool , tire inflation , blowing precess, spray paint, sand blasting and fluidic element.
Specifications:
|
Model |
Motor |
Cylinder
|
Displacement M3/min |
Exhaust Pressure Mpa |
Gas tank |
Weight (kg) |
Dimension |
|
KA-30 |
30/22 |
LP155×2 |
3 |
0.8(8) |
0.45 |
700 |
1900×850×1400 |
|
KA-25 |
25/18.5 |
LP155×2 |
2.5 |
0.8(8) |
0.45 |
700 |
1800×800×1370 |
|
KA-20 |
20/15 |
120×3 |
2 |
0.8(8) |
0.35 |
600 |
1800×800×1300 |
|
KA-15 |
15/11 |
120×3 |
1.51 |
0.8(8) |
0.3 |
500 |
1635×700×1220 |
|
KA-10 |
10/7.5 |
100×3 |
1 |
0.8(8) |
0.23 |
400 |
1554×650×1140 |
|
KA-7.5 |
7.5/5.5 |
100×2 |
0.67 |
0.8(8) |
0.18 |
280 |
1368×560×1050 |
|
KA-5.5 |
5.5/4 |
80×3 |
0.52 |
0.8(8) |
0.18 |
215 |
1425×560×1011 |
|
KA-4 |
4/3 |
80×2 |
0.4 |
0.8(8) |
0.13 |
175 |
1310×500×960 |
|
KA-3 |
3/2.2 |
80×2 |
0.3 |
0.8(8) |
0.13 |
175 |
1310×500×960 |
|
KAH-30 |
30/22 |
LP155×2 |
2.5 |
1.25(12.5) |
0.45 |
