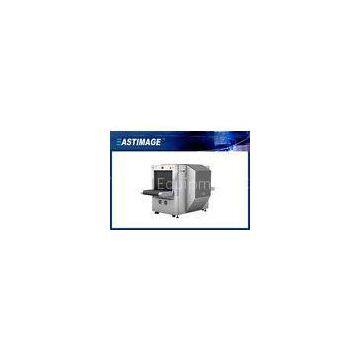

Dual view 0.2m / S Conveyor Speed X Ray Cargo Inspection System 1024 * 1280 Image
Product Description
EI-6550DV is a new product of dual view x-ray security inspection equipment. It can display horizontal and vertical images by two independent generators, and can quickly detect organic, inorganic, mixtures or light metals according to the effective atomic number of detected objects, which can identify overlapping articles and contraband easily and precisely.
Technology Features
Dual view design; display horizontal and vertical images simultaneously; identify overlapping articles and contraband easily and precisely. New x-ray protection technology Multi-functions image processing system EI-TIP( Threat Image Projection) function Shiny clear images Any selection of the image magnified area Collection the high-speed parallel of detection data Removable split structure with independent console Medium tunnel design with multi-functions operator interface Support JPG&BMP image transformation format to USBX-Ray Generator
Anode Voltage..........................160 KV(adjustable)
Beam Direction.........................From bottom & From side
Cooling & Running Cycle......Sealed oil cooling & 100％
X-Ray Sensor..............................Multi-energy L photoelectric diode array detector
X-Ray Security
Single inspection dose rate......< 5µGy
Leakage...............................< 2µGy/h(5cm distance from outer)
Film Safty............................According to the ISO1600(33DIN) High speed standard
Installation Data
Size ........................2238 mm(L)x 1306 mm ( W)x 1415 mm(H)
Weight ..................800 KG
Working Temperature / Humidity.......0℃～+45℃／20%～95% (non-condensing)
Storage Temperature / Humidity........-40℃～+60℃／20%～95% (non-condensing)
Power Supply..........AC 220 V(+10%~-15%) 50±3(Hz)
Power Consumption......About 0.50(KVA)
