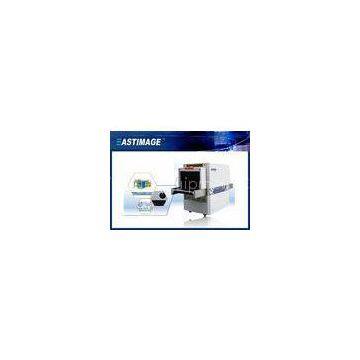

Airport X Ray Baggage Scanner Luggage Scanner With 17 Inch Color Led Display

FOB Price

US$ 11500 - 14000 / / Pair

1 Pair(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	EASTIMAGE		Place of Origin	China
Model Number	EI-V6040

Product Description

Delivery Time:3-5 days after getting payment
Certification:CE,FCC,FDA,ROHS,ISO9001

Airport X Ray Baggage Scanner Luggage Scanner With 17 Inch Color Led Display

Product Parameters:

General Specification

Tunnel Size	615(W)*415(H)mm
Conveyor Speed	0.2m/s
Conveyor Max Load	160kg
Dose per Inspection	<2uGy/h
Resolution	<0.0787mmMetal Wire
Spatial resolution Level	diaφ1.0mm , Vertical:diaφ1.0mm
Through resolution	φ0.254mm
Penetration	38mm Steel
Film Safety	Guarantee ISO1600 Film
X-ray Leakage	<1uGy/h (at a distance of 5cmFrom external housing)

X-ray Generator

Generate direct	Upward
Generate angle	80 degree
Anode Voltage	160Kv
Anode power	0.4 to 1.2mA
Cooling / Duty Cycle	Oil Cooling /100%

Image System

X-ray Sensor	L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
Monitor	High Resolution Color, LCD Accord, 17 inch
Detector	1
Color display	full color
Image Processing	Edge enhancement, image strengthening, Image lightening, reducing darkening, image returning, image retrieval.
Image Grey Level	8192
Image Max Resolution	1024 * 1280 pixel
Image Processing	24 bit for processing real time
Image storage	Storage 100,000 pictures in real time
Zones & Zoom	Any Image regions, 64X Times Enlarge, Whole screen continuous observation
Multi-energeti distinguish objects	organic objects in orange,inorganic objects in blue, mixture in green
High-energy /low energy	switch from high energy to low energy

Installation Data

Operating Temperature	0℃~45℃
Operating Humidity	20%-95%(non-condensing)
Storage Temperature	-40℃~60℃
Storage Humidity	20%-95%(non-condensing)
Operation Power	220AVC/(±10)50Hz±3Hz
Power Consumption	About 0.43KVA
Noise	<65 dB

Feature and Application:

High-precision X-ray detector, making the image more clearly With the world leading pure digital, large scale analog components realize high-speed parallel data acquisition Medium tunnel design, including the operator rights management, real time status information, reports and other user-friendly configuration, the overall aesthetic and practical device Advanced image processing platform, providing strong functions to operator Adopt Building Block design, brings conveniences for functions updates and modifies Meet all the applicable laws and regulations with respectable X-ray emitting devices Penetration, resolution and other key technical specifications have reached or exceeded the national standard GB15208-2005 For mass transit, highway system and other important places
